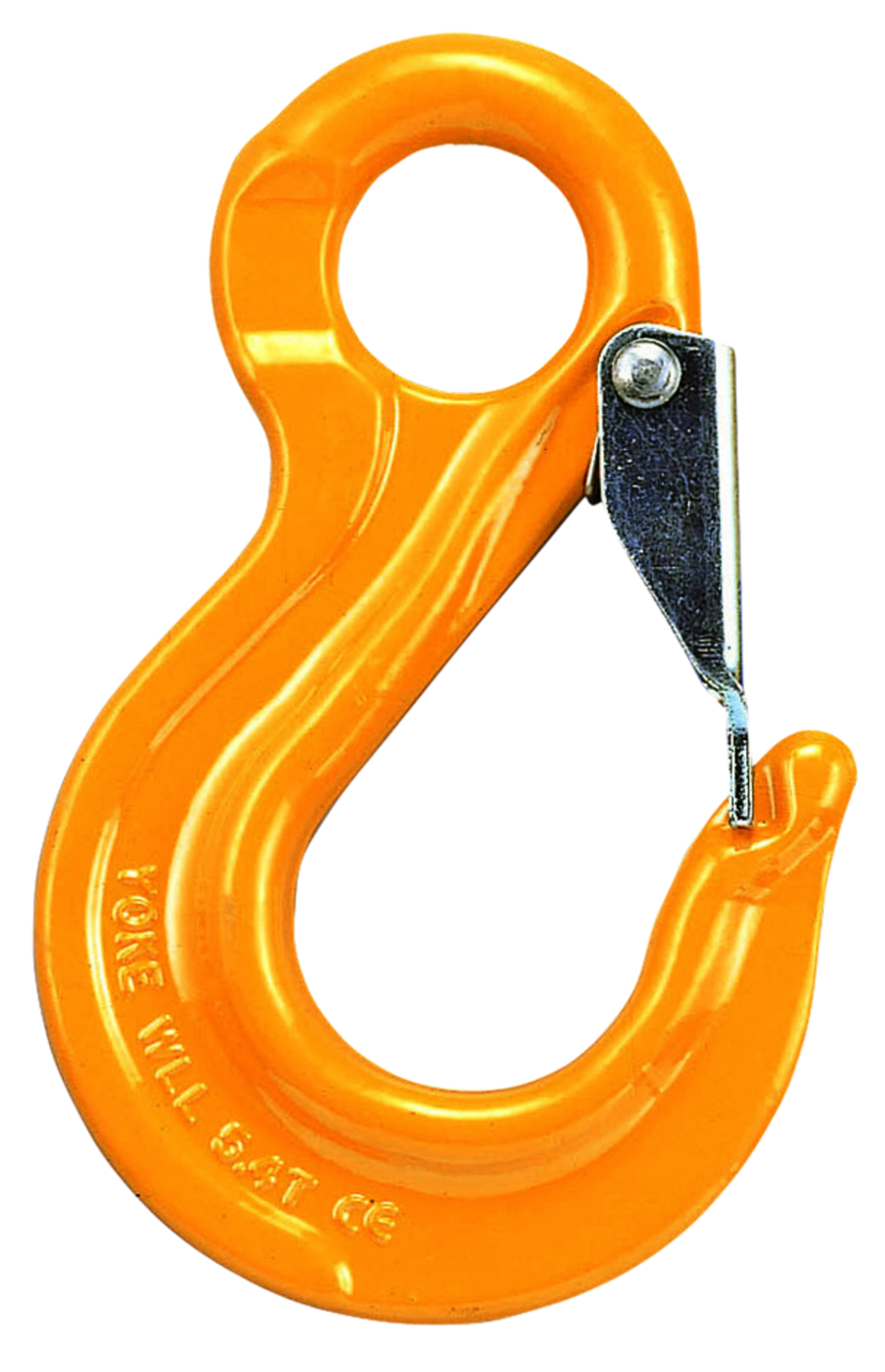

Slavekrok med øye type YP



  • Design faktor 4:1 Tested og sertifisert i henhold til NS-EN 1677-2.
Vis mer
Be om leveringstid

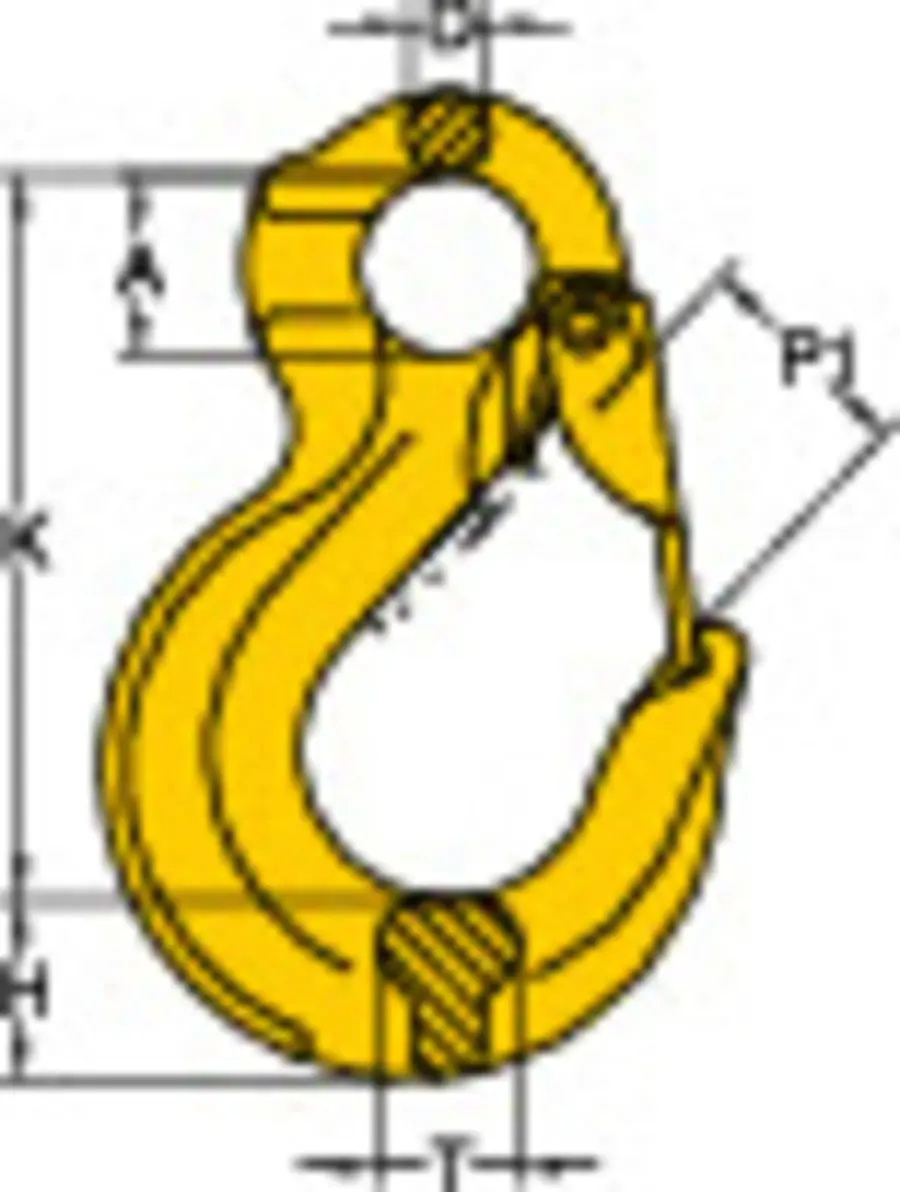

Varenr Type.Code WLL For kjetting Mål i mm KG
    4:1 tonn   K P1 D T A H N.W.
0312300 YP-6 1,12 6 mm 80 23 9 16 20 20 0,3
0312301 YP-7/8 2,00 7-8 mm 98 28 11 20 25 23 0,5
0312302 YP-10 3,15 10 mm 121 36 14 23 32 31 1,0
0312303 YP-13 5,30 13 mm 152 40 18 28 40 38 1,7
0312304 YP-16 8,00 16 mm 184 44 22 32 50 47 3,2
0312305 YP-18/20 12,50 18-20 mm 218 45 26 43 60 48 5,5
