Yoke Wide Body sjakkel med mutterbolt

100% magnaflux crack detection during manufacturing 20000 cycle fatigue rated to 1,5 times working load limit ...

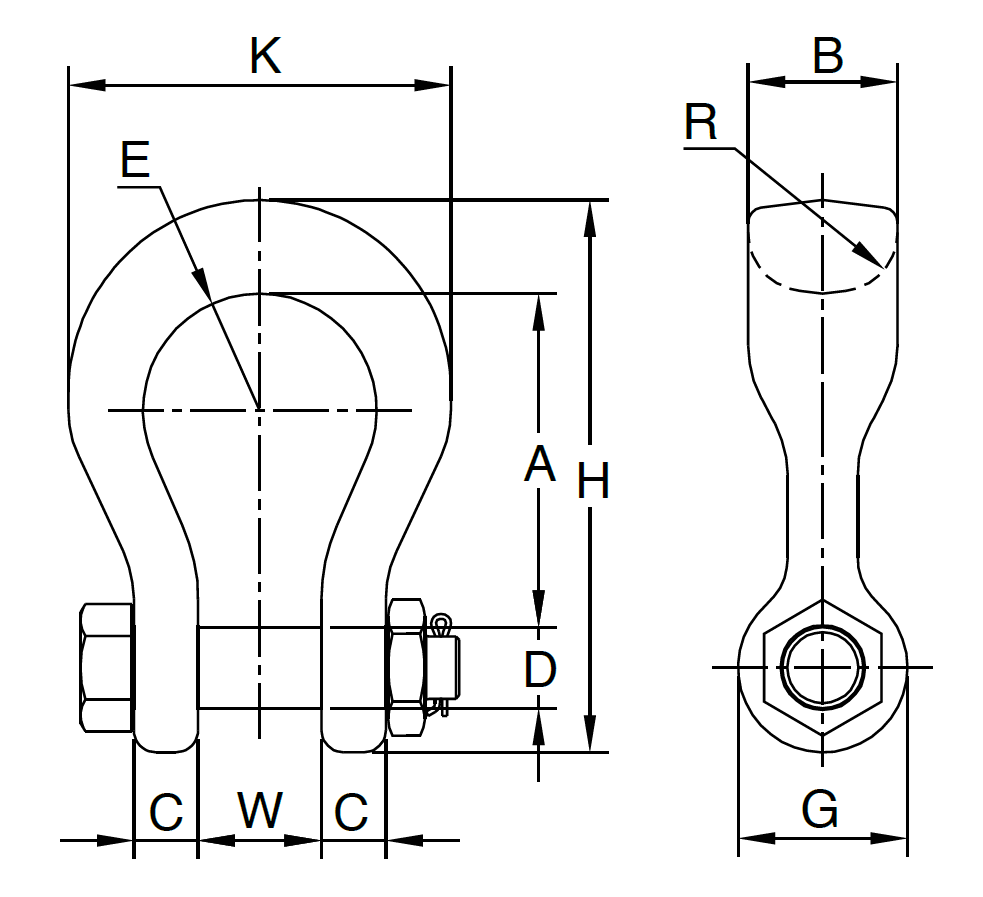

Varenr WLL Mål i mm / Dim mm KG
Item no. 5:1 tonn A B C D E G H K R W N.W.
0212001 7,0 91 41 18 22 32 46 150 104 32 33 1,7
0212002 12,5 118 54 23 29 41 61 194 140 35 44 3,8
0212003 18,0 148 64 30 36 51 68 238 172 38 54 6,7
0212004 30,0 176 80 35 45 64 89 289 216 45 60 12,5
