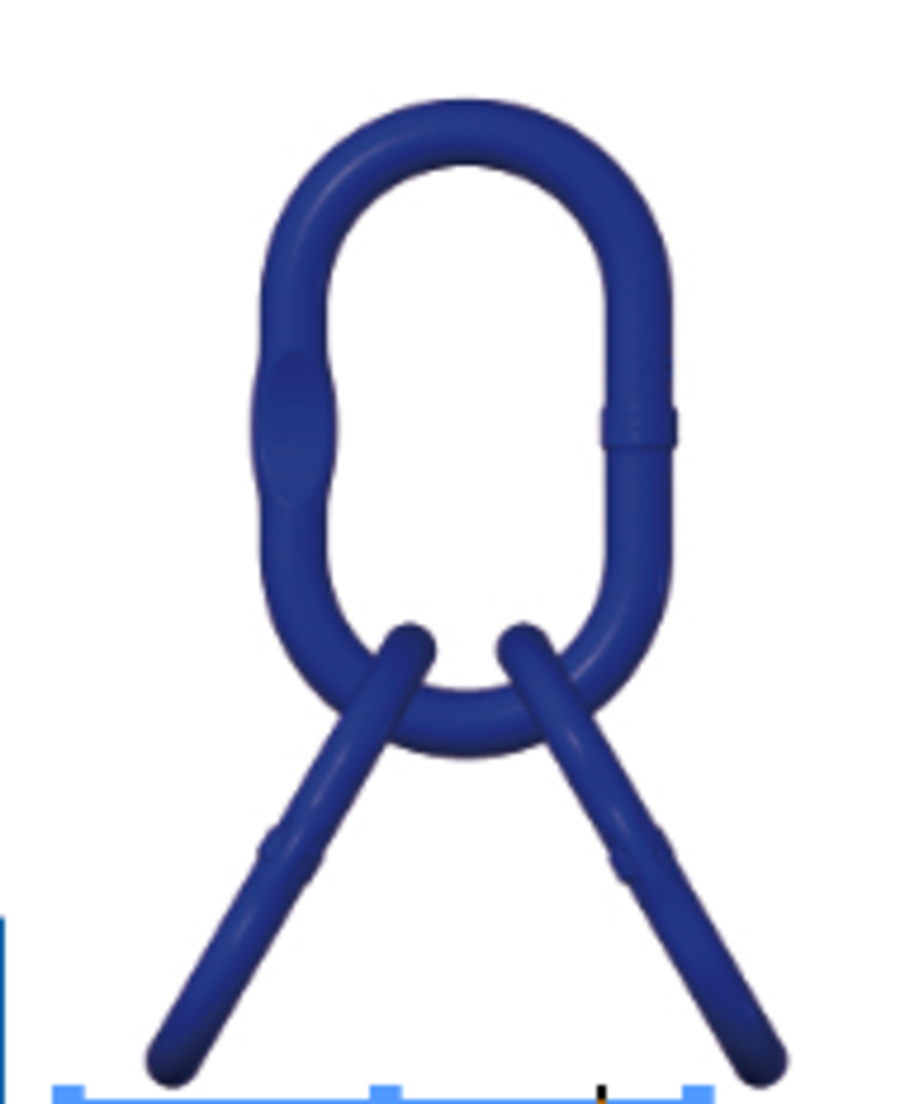

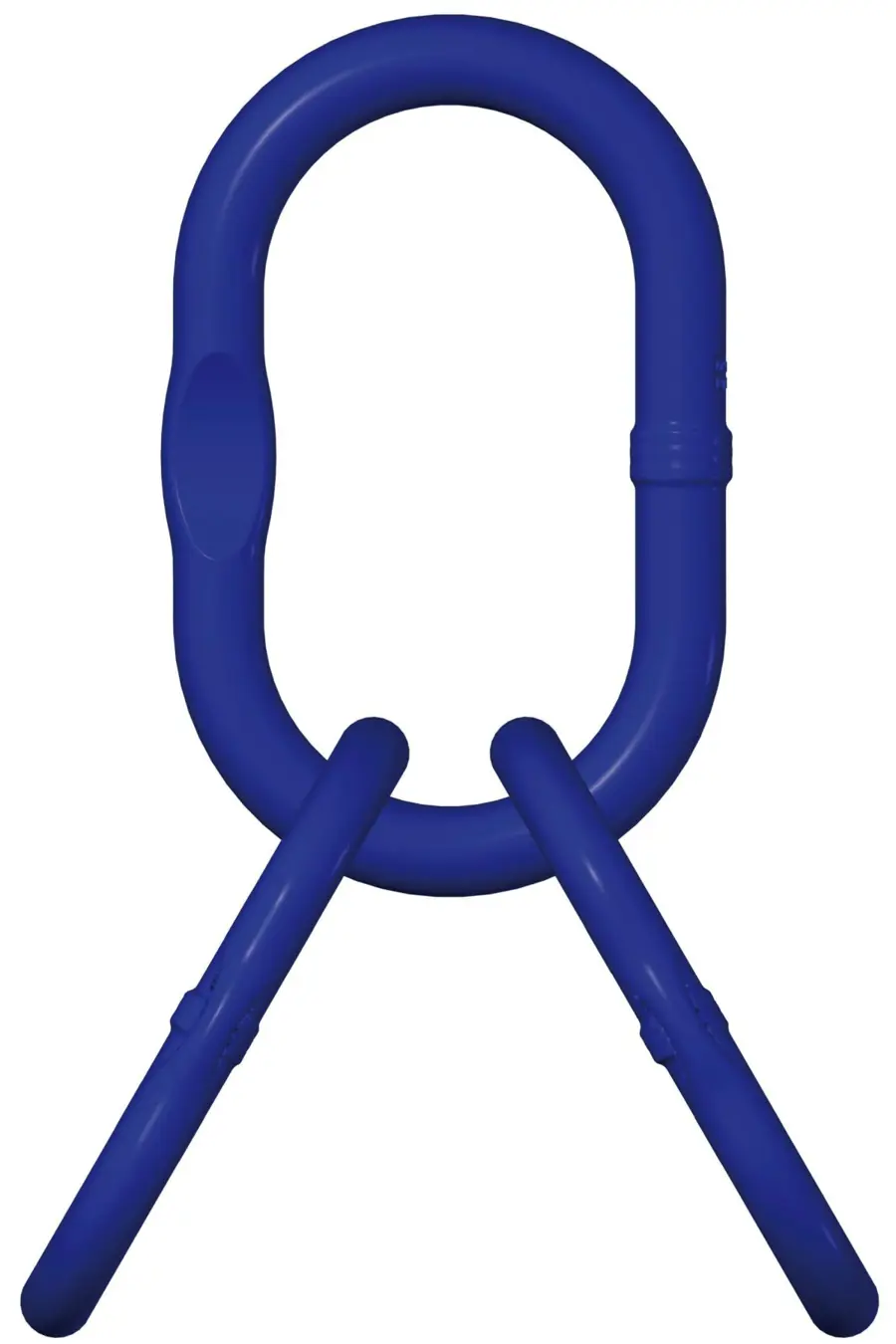

Fram Master link assemblies

Nøsted & is the only master link manufacturer in Norway.
Fram master links and master link assemblies are type approved by DNVGL in accordance with DNVGL 2.7-1 and EN 1677-4.
Fram master link are produced up to 70 mm and 84,4 tons with safety factor 5.
Master links and hooks are tested 2,5 times WLL and certified

Show more
Find dealer
Downlad datasheet
Ask for delivery time

Item no. Dim.Code WLL Top loop/Master Link Balance loop/
Intermediate M.L.		 kg
5:1 ton Designate. Dimensions in mm Designate. Dimensions in mm N.W.
0301501 Q.16.B 4,1 16.B.6 70 x 120 13.B.5 51 x 95 1,2
0301502 Q.20.B 6,5 20.B.7 90 x 170 16.B.6 70 x 120 2,5
0301515 Q.22.B.8 5,8 22.B.8 140 x 270 16.B.6 70 x 120 3,5
0301503 Q.22.B 8,2 22.B.6 90 x 170 20.B.6 80 x 150 3,8
0301504 Q.25.B 10,7 25.B6 100 x 190 20.B.6 80 x 150 4,5
0301505 Q.28.B 12,9 28.B.6 113,5 x 209 22.B.6 90 x 170 6,4
0301506 Q.32.B 17,1 32.B.6 140 x 270 25.B.6 100 x 190 9,9
0301507 Q.38.B.6 28,1 38.B.6 140 x 270 32.B.6 140 x 270 18,2
0301508 Q.45.B 38,3 45.B.6 170 x 320 38.B.6 140 x 270 27,7
0301509 Q.50.B 45,0 50.B.6 200 x 380 38.B.6 140 x 270 33,2
0301510 Q.60.B 65,3 60.B6 220 x 430 50.B.6 200 x 380 66,0
0301511 Q.70.B 84,0 70.B.6 250 x 475 60.B.6 220 x 430 103
