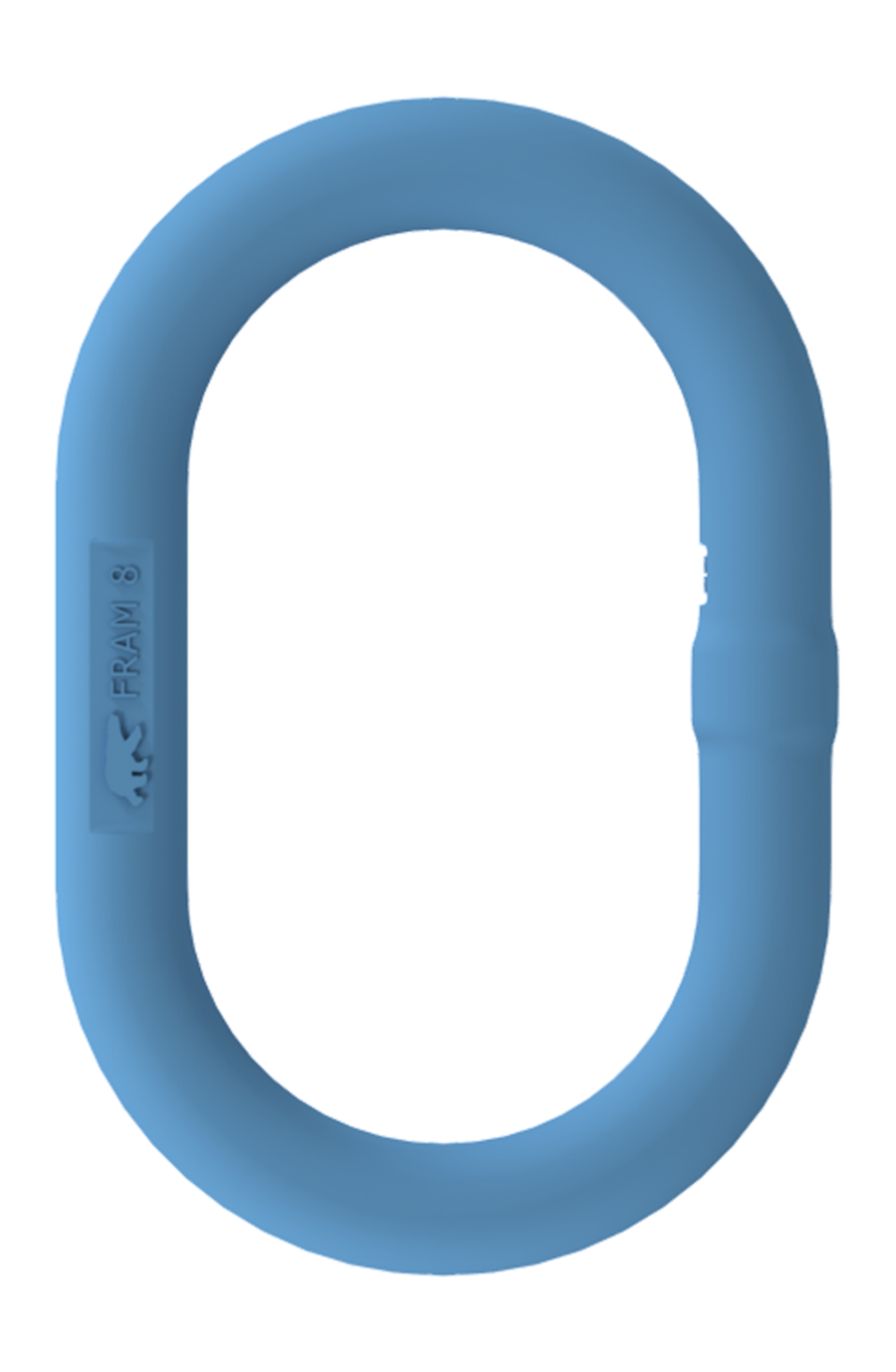

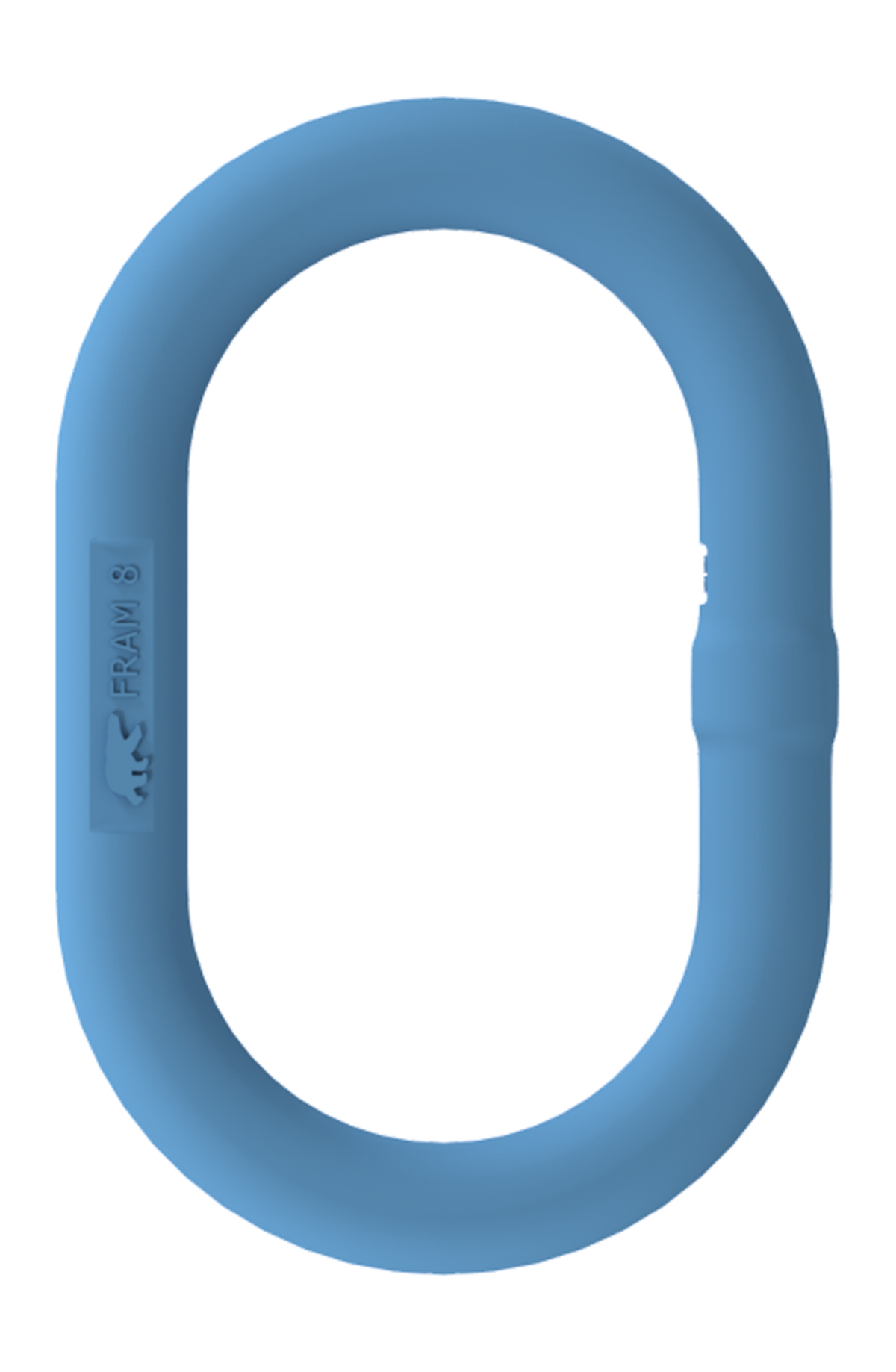

OF MASTER LINKS
These masterlinks has been designed, approved and tested in accordance with Det Norske Veritas standard for Certification No. 2.7-1 “Offshore Freight Containers”. The masterlinks also conform to the following standard(s): – EN 1677-4

Nøsted & is the only master link manufacturer in Norway.

Fram master links and master link assemblies are type approved by DNVGL in accordance with DNVGL 2.7-1 and EN 1677-4.
Fram master link are produced up to 70 mm and 84,4 tons with safety factor 5.
Master links and hooks are tested 2,5 times WLL and certified

Show more
Find dealer
Download datasheet
Ask for delivery time

Item no. Dimension.Code WLL Dim mm Weight in KG
5:1 ton D B L N.W.
0301054* 16.6 OF 4,1 16 70 120 0,6
0301056* 20.6 OF 6,7 20 82 150 1,1
0301058 22.6.OF 8,2 22 90 170 1,6
0301059* 22.8 OF 5,8 22 140 270 2,3
0301060 25.6.OF 10,7 25 103 190 2,3
03010601 25.7.OF 8,8 25 140 270 3,0
0301061 28.6.OF 12,9 28 113.5 209 3,2
0301062 28.7.OF 11,8 28 140 270 4,0
0301063 32.6.OF 17,1 32 140 270 5,3
0301064 38.6.OF 28,1 38 140 270 7,5
0301066 45.6.OF 38,3 45 170 320 12,5
0301068 50.6.OF 45,0 50 200 380 18,0
0301069 60.6.OF 65,3 60 220 430 30,0
0301069 60.6.OF 65,3 60 220 430 30,0
0301070 70.6 OF 84,4 70 250 475 44,0

* = WLL is to low for DNV-ST-E271 (7 tons minimum)
