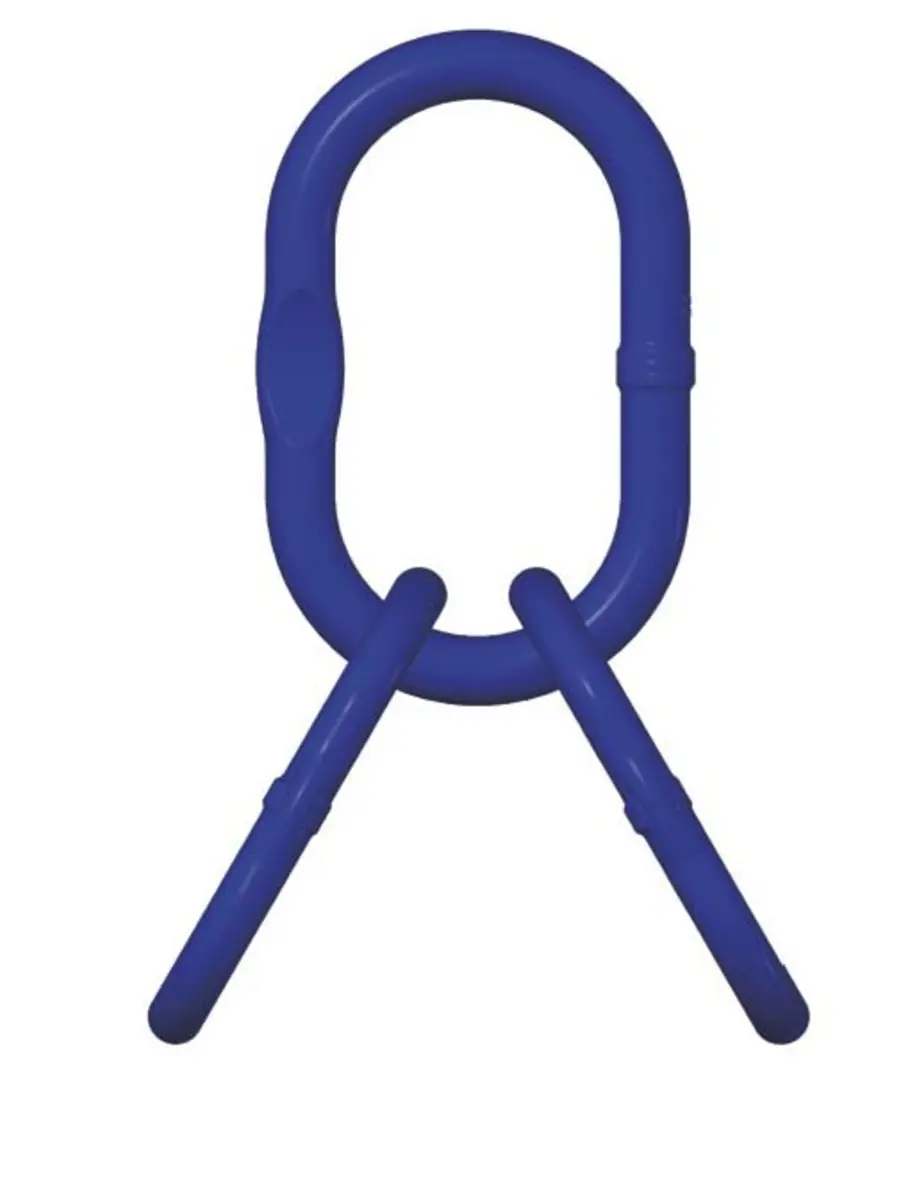

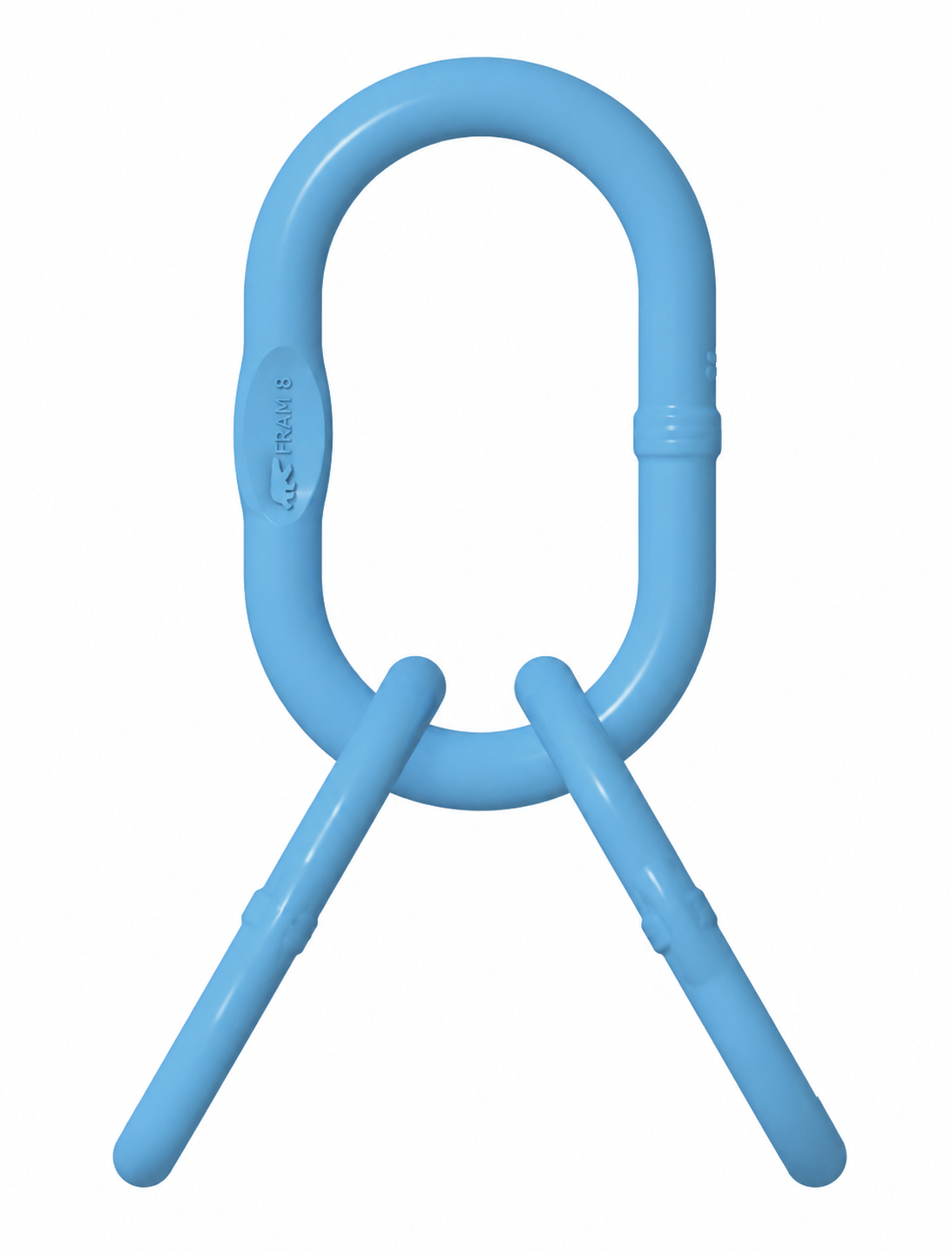

Fram Offshore Master links assemblies
These masterlinks has been designed, approved and tested in accordance with Det Norske Veritas standard for Certification No. 2.7-1 “Offshore Freight Containers”. The masterlinks also conform to the following standard(s): – EN 1677-4

Nøsted & is the only master link manufacturer in Norway.
Fram master links and master link assemblies are type approved by DNVGL in accordance with DNVGL 2.7-1 and EN 1677-4.
Fram master link are produced up to 70 mm and 84,4 tons with safety factor 5.
Master links and hooks are tested 2,5 times WLL and certified

Show more
Find dealer
Downlad datasheet
Ask for delivery time

Item no. Dimension.Code WLL Master Link Intermediate Masterlink Weight in KG
5:1 ton Designation Dim. mm Designation Dim. mm N.W.
0301523 MA22 OF 8,2 22.6 OF 90 x 170 20.6 OF   80 x 150 3,8
0301524 MA25 OF 10,7 25.6 OF 100 x 190 20.6 OF   80 x 150 4,5
0301525 MA28 OF 12,9 28.6 OF 113,5 x 209 22.6 OF   90 x 170 6,4
0301526 MA32 OF 17,1 32.6 OF 140 x 270 25.6 OF 100 x 190 9,9
0301527 MA38 OF 28,1 38.6 OF 140 x 270 32.6 OF 140 x 270 18,2
0301528 MA45 OF 38,3 45.6 OF 170 x 320 38.6 OF 140 x 270 27,7
0301529 MA50 OF 45,0 50.6 OF 200 x 380 38.6 OF 140 x 270 33,2
0301530 MA60 OF 65,3 60.6 OF 220 x 430 50.6 OF 200 x 380 66,0
