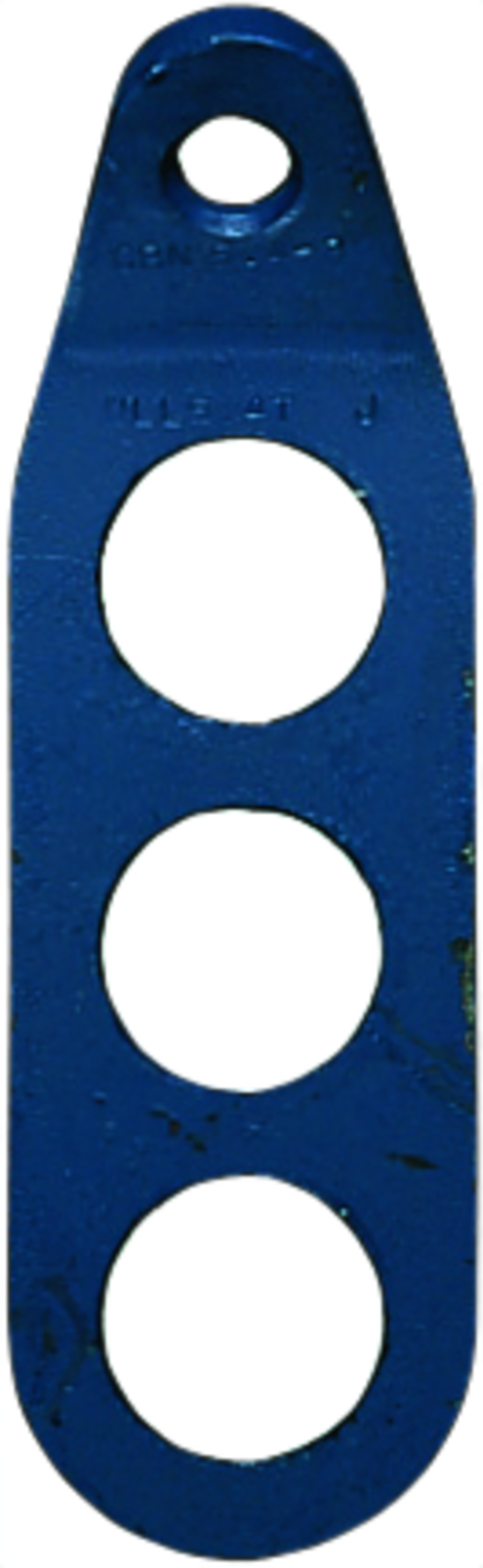

Container fittings

Dim. code | WLL (ton)

Find dealer

Ask for delivery time

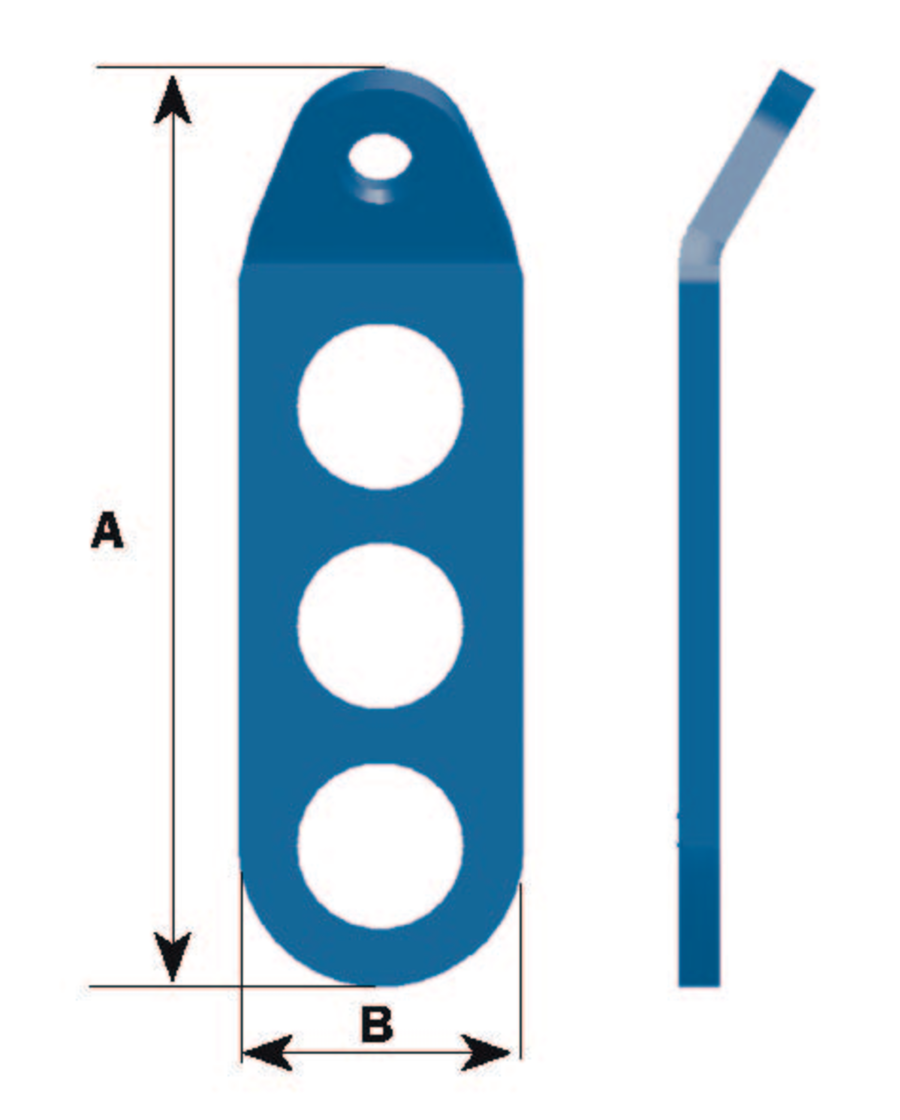

Item no.	Dim.	WLL	For chain Dim.	Coupling element	Hole dia. mm	Number of hole	Dim mm		kg
		4:1 ton					A	B	N.W.
0310026	CBN-5,4-1	5.4	13	GM 13	64	1 N*	280	110	2.35
0310025	CB-5,4-3	5.4	13	GM 13	64	3	360	110	3.05
0310027	CB-5,4-5	5.4	13	GM 13	64	5	565	120	5.35
0310028	CBN-5,4-3	5.4	13	GM 13	64	3 N*	514	100	3.95
