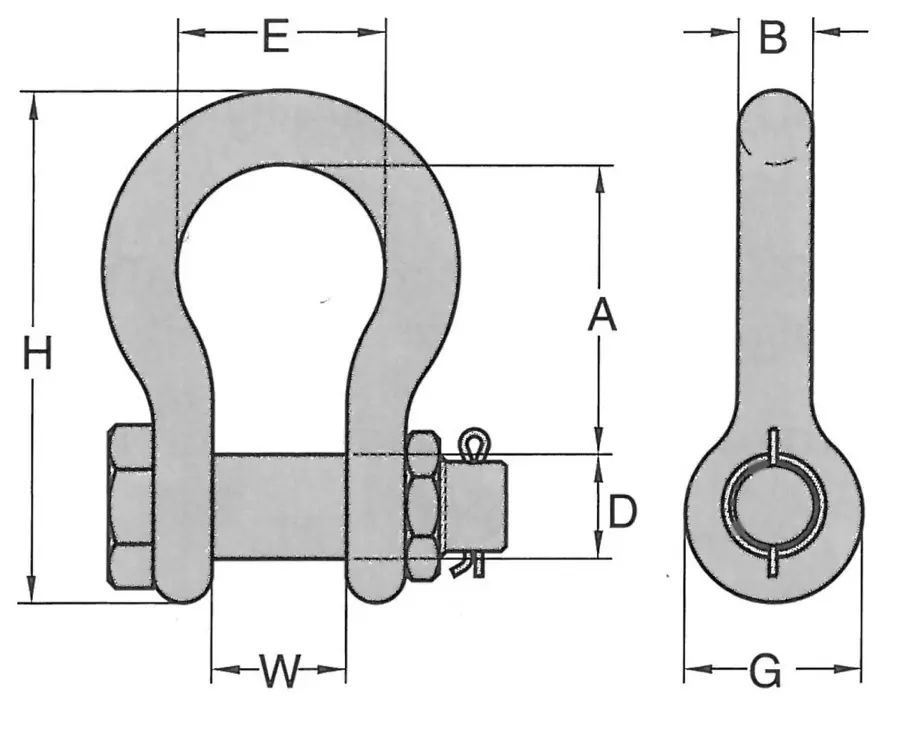

Item no. | Dim.Code | WLL | Dim mm | kg | ||||||
ton* | B | D | W | A | E | G | H | N.W. | ||
0219001 | 5/16” | 0.75 | 8 | 9.5 | 12 | 31 | 21 | 19 | 54 | 0.1 |
0219002 | 3/8” | 1 | 10 | 11 | 16 | 36 | 26 | 23 | 65 | 0.1 |
0219003 | 7/16” | 1.5 | 11 | 13 | 19 | 43 | 30 | 27 | 75 | 0.2 |
0219004 | 1/2” | 2 | 13 | 16 | 20 | 47 | 33 | 30 | 85 | 0.4 |
0219005 | 5/8” | 3,25 | 16 | 19 | 27 | 61 | 43 | 38 | 106 | 0.7 |
0219006 | 3/4” | 4.75 | 19 | 22 | 33 | 72 | 50 | 46 | 126 | 1 |
0219007 | 7/8” | 6.5 | 22 | 26 | 38 | 86 | 58 | 53 | 148 | 1.7 |
0219008 | 1” | 8.5 | 26 | 28 | 44 | 96 | 68 | 61 | 166 | 2.5 |
0219009 | 1 1/8” | 9.5 | 28 | 32 | 46 | 111 | 74 | 68 | 190 | 3.4 |
0219010 | 1 1/4” | 12 | 32 | 36 | 54 | 121 | 84 | 76 | 210 | 4.8 |
0219011 | 1 3/8” | 13.5 | 36 | 38 | 59 | 134 | 92 | 84 | 232 | 6.5 |
0219012 | 1 1/2” | 17 | 38 | 43 | 60 | 146 | 99 | 92 | 254 | 8.8 |
0219013 | 1 3/4” | 25 | 47 | 51 | 73 | 178 | 127 | 106 | 313 | 17.5 |
0219014 | 2” | 35 | 53 | 57 | 83 | 197 | 146 | 122 | 347 | 24.2 |
