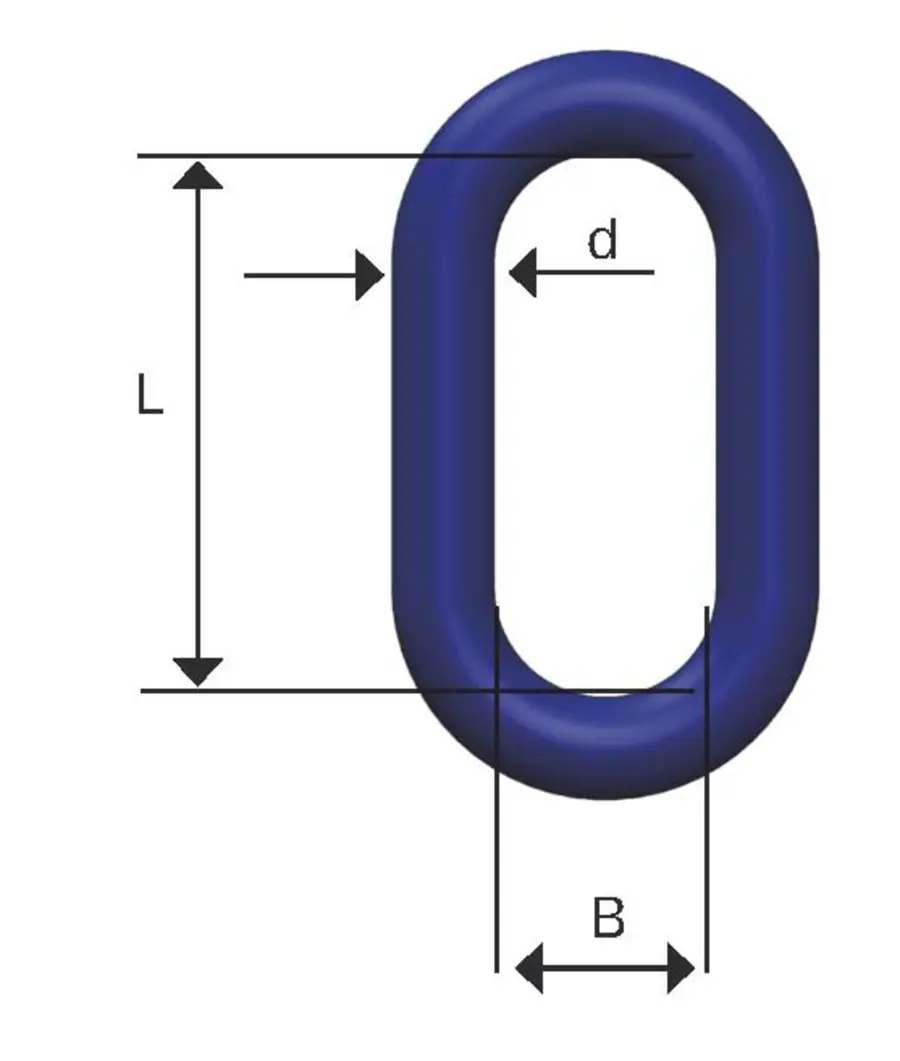

Item no. | Dim.Code | WLL | For chain dimension | Dim mm | Weight in KG | ||
4:1 ton | d | B | L | N.W. | |||
0301801 | 9.B.5 | 1,5 | 7 | 9 | 21 | 45 | 0,07 |
0301802 | 10.B.5 | 2,0 | 8 | 10 | 26 | 56 | 0,1 |
0301803 | 13.B.4 | 3,8 | 10 | 13 | 28 | 69 | 0,2 |
0301804 | 16.B.3 | 5,4 | 13 | 16 | 33 | 77 | 0,4 |
0301805 | 20.B.3 | 8,0 | 16 | 20 | 38 | 92 | 0,7 |
0301806 | 22.B.2 | 12,5 | 20 | 22 | 44 | 115 | 0,9 |
0301807 | 25.B.2 | 15,5 | 22 | 25 | 50 | 125 | 1,4 |
0301808 | 28.B.2 | 20,0 | 26 | 28 | 52 | 135 | 1,8 |
0301809 | 32.B.2 | 25,0 | 28 | 32 | 63 | 156 | 2,7 |
0301810 | 38.B.1 | 32,0 | 32 | 38 | 73 | 168 | 4,4 |
0301811 | 45.B.3 | 50,0 | – | 45 | 83 | 202 | 8,0 |
0301812 | 50.B.2 | 63,0 | – | 50 | 99 | 255 | 12,0 |
