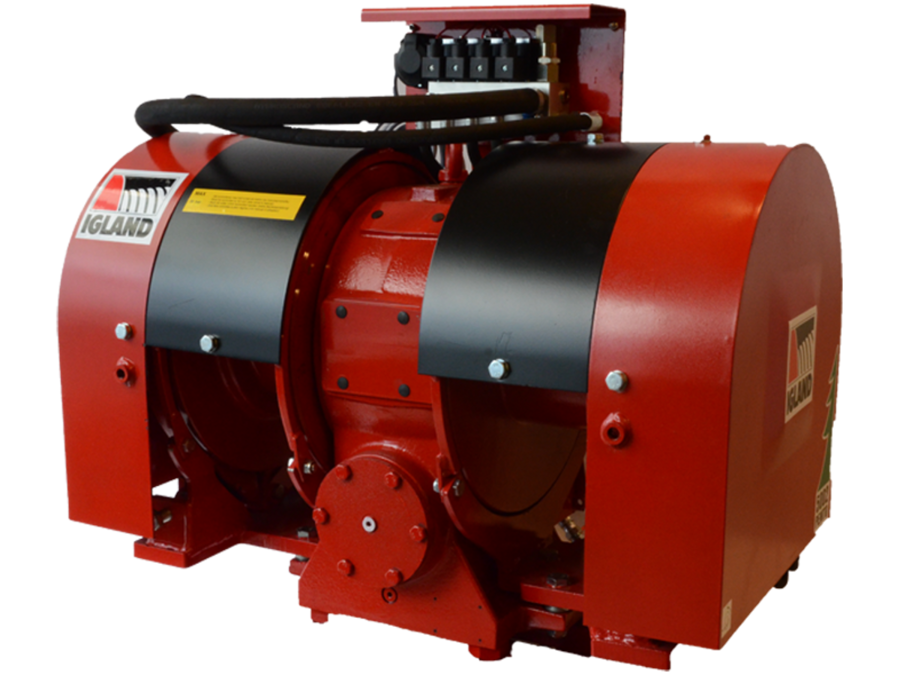

IGLAND 5002 Pento
kr 184 116,00 per pcs
Inkl. mva.

Igland two-drum winches are mostly sold in a TL version which consists of winch head, mounting bracket, and butt plate. They are mounted together in one unit and are adapted to the tractor with a 3-point hitch. In some occasions the customer wants only the winch head and this can be delivered separately on request for permanent mounting on tractors and forestry machines.

This winch head has an electrohydraulic high-pressure operation with self-contained hydraulics as standard. Radio remote control is optional. The advantage of two-drum winch is to able to distribute the load on the two wire-ropes. The result is that the timber becomes easier to handle, gives excellent working conditions, and safety is handled in a good way.

Fixed installation has some advantage compared to a fully rigged winch. With a fixed installation the winch will be more stable since it is fitted close to the tractor, which then results in tighter fitting to the tractor’s rear axle and center of gravity.

Show more
Ask for delivery time

Max pulling capacity / empty drum:: 50 kN (5 ton)
Max pulling capacity / full drum: 26,5 kN
Number of drums: 2
Wire rope, theoretical capacity: 118 m,11 mm/ 97 m,12 mm (ISO 6687)
Recommended wire rope length: 35 m, 11 mm
Pulling speed at 540 rpm: 0,59 – 1,12 m/s
Ratio: 1:9,7
Necessary power input: 37 kW (ISO 6687)
Braking power: Min 62,5 kN (6,25 tonn)
Clutch: Enkel tørrplate
Brake: Outer brakeband, automatic safetybrake
Height/ Width/ Depth: 74/ 85/ 50 cm
Weight (without wire rope): 347 kg
