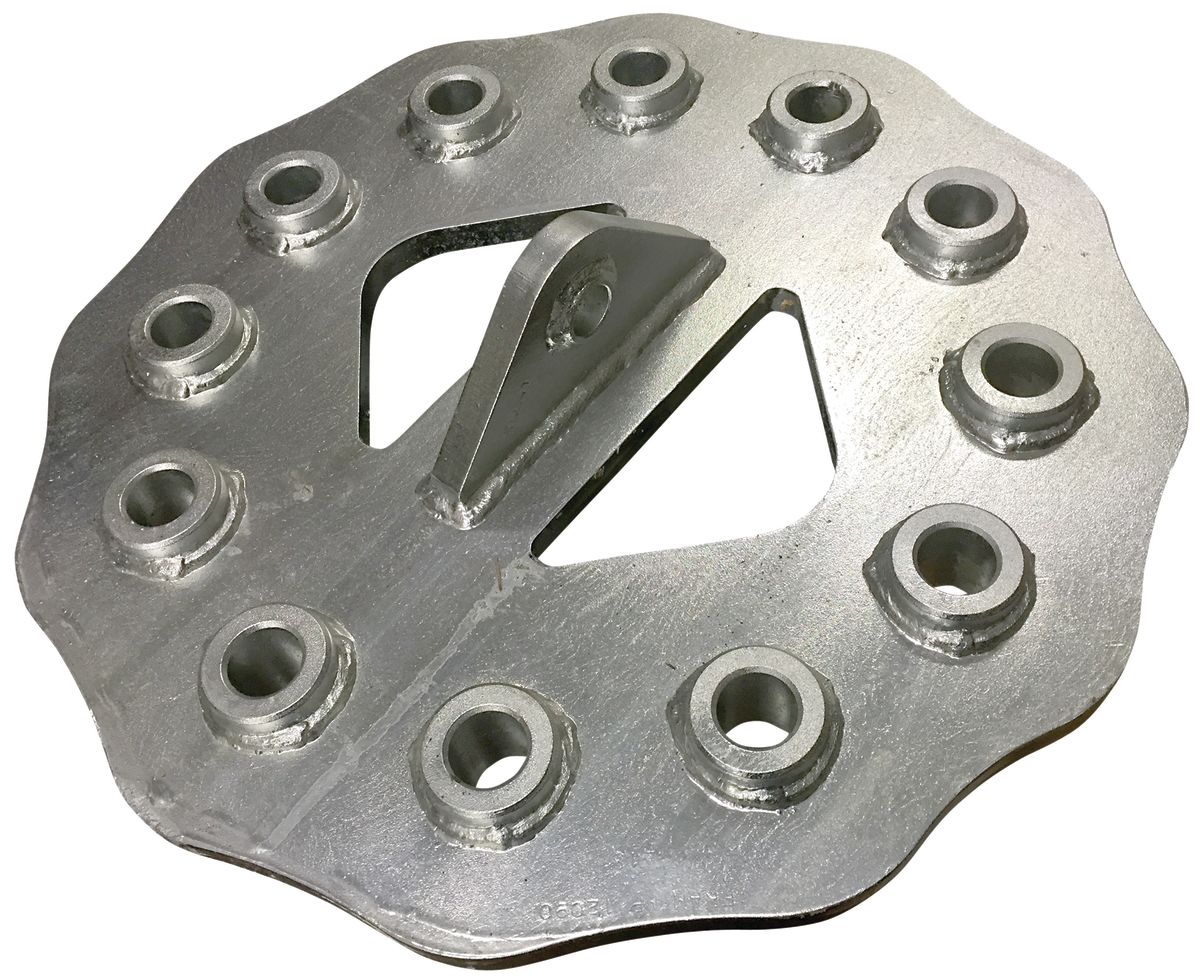

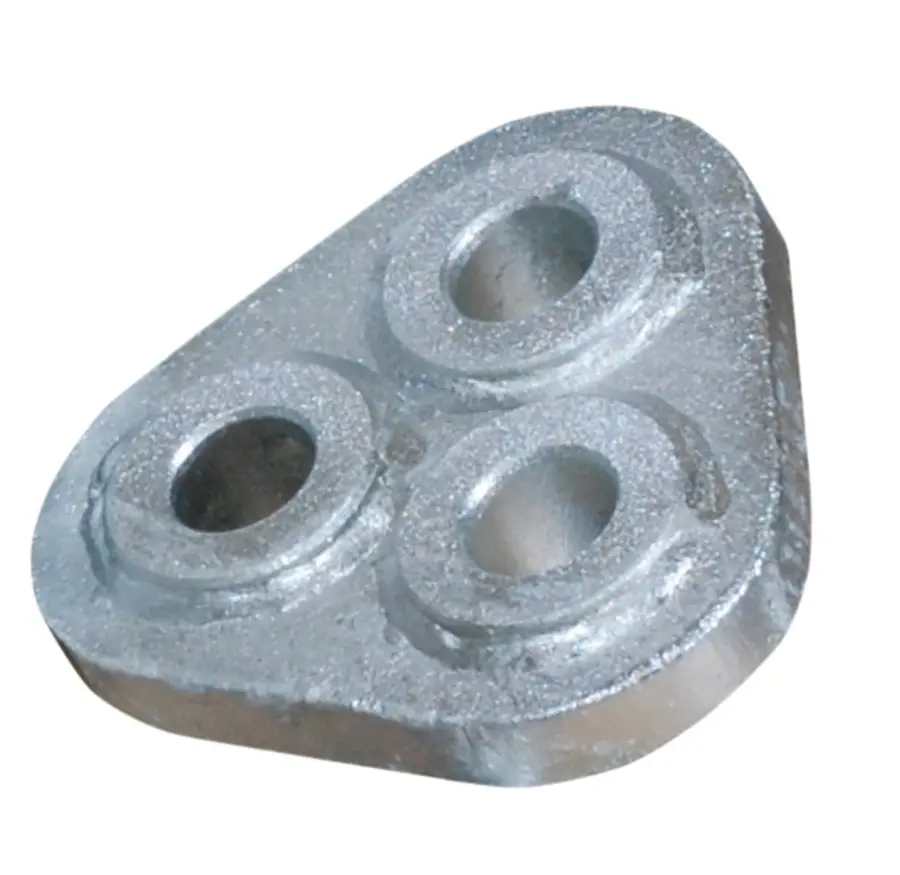

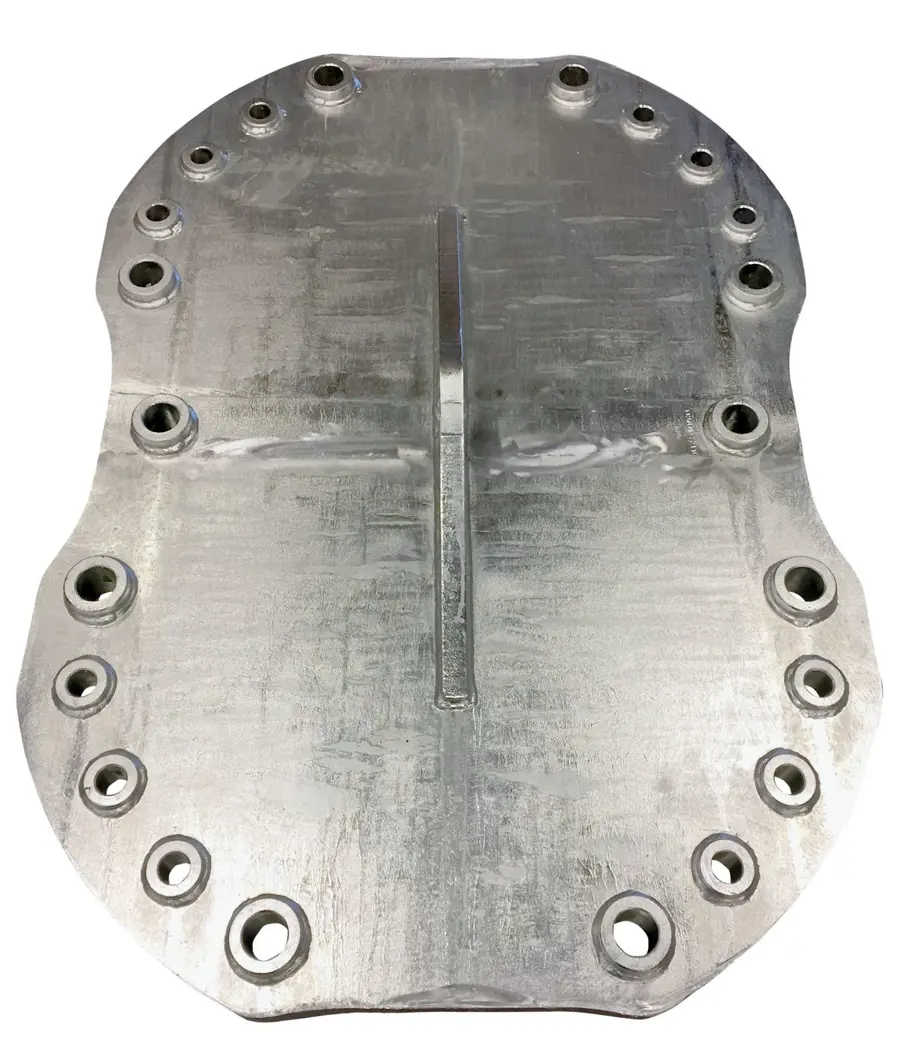

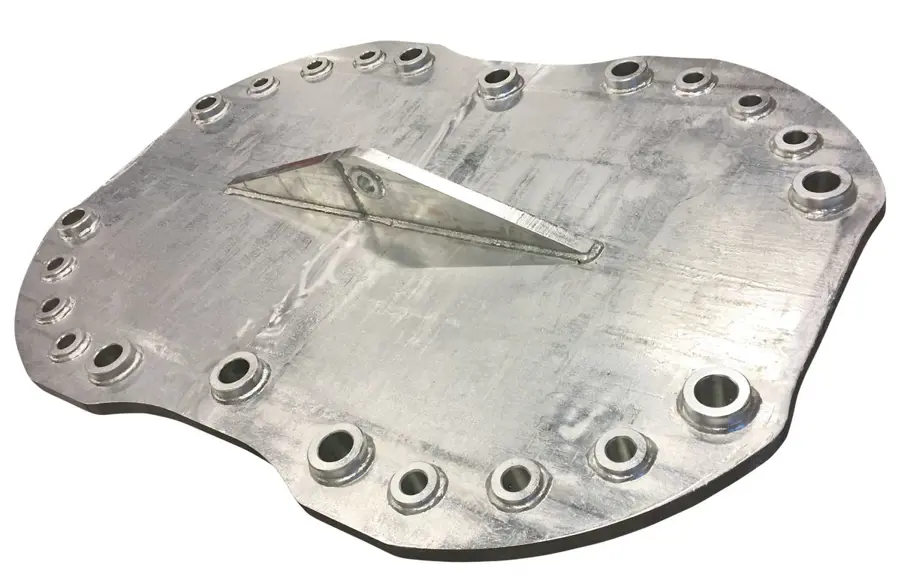

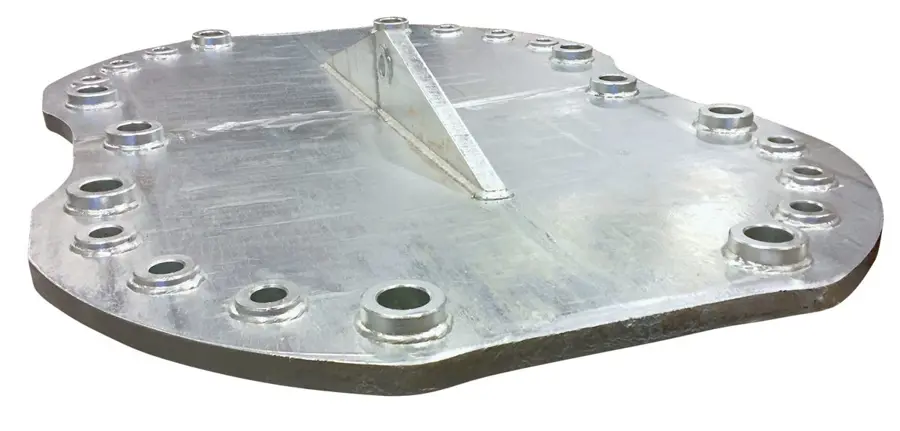

Mooring plates

Dim. code | Breaking force (ton)

Find dealer

Ask for delivery time

Item number	Product ID	No. of holes	Ultimate yield strength		Large hub		Small hub		Pad eye
Item number	Product ID	No. of holes	[kN]	[ton]	Length[mm]	ø [mm]	Length [mm]	ø [mm]	Shacle type	WLL [ton]
T1190132	MP351	3	340	34,7	38	34
H7100082	MP380	3	534	54,4	48	44
0602487	MP3150	3	1104	113	88	53
T1190134	MP451	4	340	34,7	38	34
0602441	MP881	8	596	60,8	45	39			6,5t Bow Shackle	4
0602443	MP16090	16	662	67,5	57	37			6,5t Bow Shackle	6,5
0602465	MP16090-2	16	662	67,5	57	37			6,5t Bow Shackle	6,5
0602491	MP16090-3	16	662	67,5	57	37			9,5t Bow Shackle	9,5
0602462	MP18110	18	809	82,5	78	48	57	37	9,5t Bow Shackle	9,5
0602476	MP20090-2	20	662	67,5	57	37	47	30	6,5t Bow Shackle	6,5
0602469	MP20110	20	809	82,5	78	48	57	37	9,5t Bow Shackle	9,5
0602472	MP20150	20	1104	112,5	88	53	57	37	9,5t Bow Shackle	9,5
0602474	MP20150-2	20	1104	112,5	88	53	57	37	9,5t Bow Shackle	9,5
0602479	MP22150	22	1104	112,5	88	53	57	37	9,5t Bow Shackle	9,5
