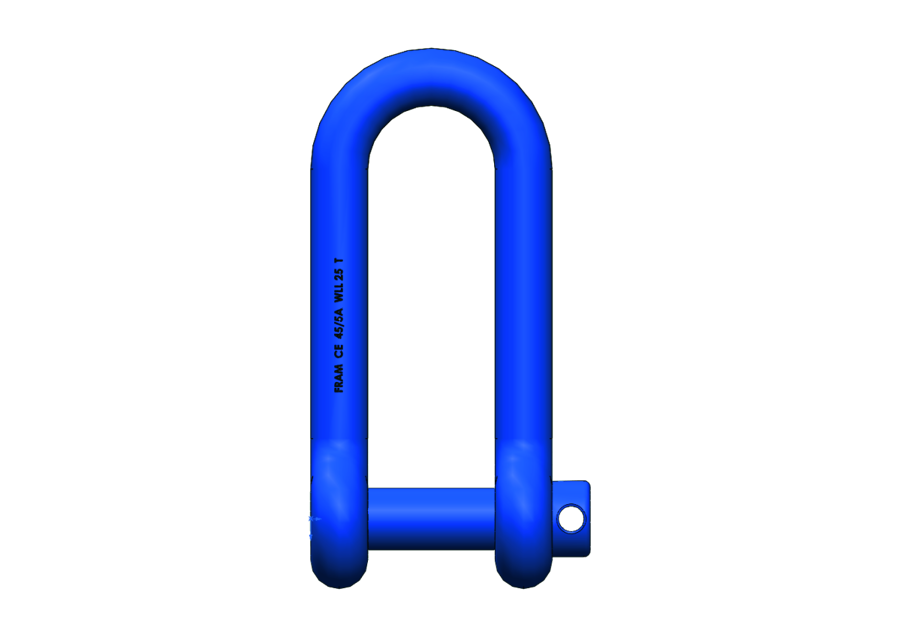

FRAM Shackles long type A with eye pin

Dim. code | WLL (ton)

Find dealer

Ask for delivery time

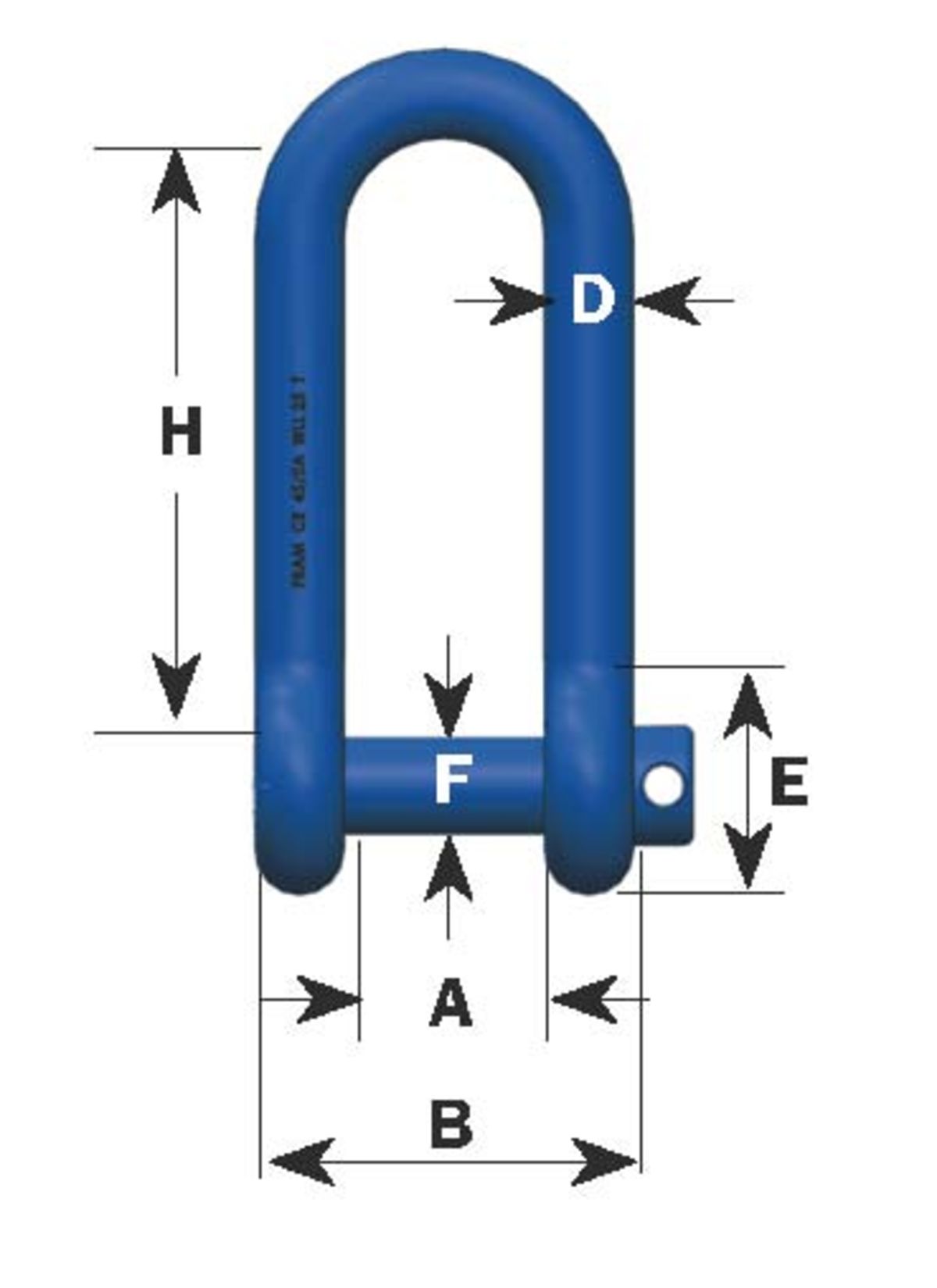

Item no.	Dim.Code	WLL	Dim mm							kg
		4:1 ton	A	B	D	E	F	H min.	H max.	N.W.
0207011	25/4A	8	55	105	25	60	30	150	160	2.8
0207012	25/5A	7	70	120	25	60	30	140	150	2.8
0207013	25/6A	6	100	150	25	60	30	135	145	3
0207001	32/4A	20	60	124	32	90	36	220	235	6.6
0207002	32/5A	15	80	144	32	90	36	215	230	6.9
0207003	32/6A	11	100	164	32	90	36	210	225	7.1
0207004	45/4A	30	80	170	45	110	49	250	265	14.2
0207005	45/5A	25	100	190	45	110	49	245	260	14.4
0207006	45/6A	20	130	220	45	110	49	235	250	14.8
0207007	50/4A	50	100	200	50	120	59	310	330	22.4
0207008	50/5A	40	130	230	50	120	59	300	320	23.1
0207009	50/6A	30	160	260	50	120	59	290	310	23.9
