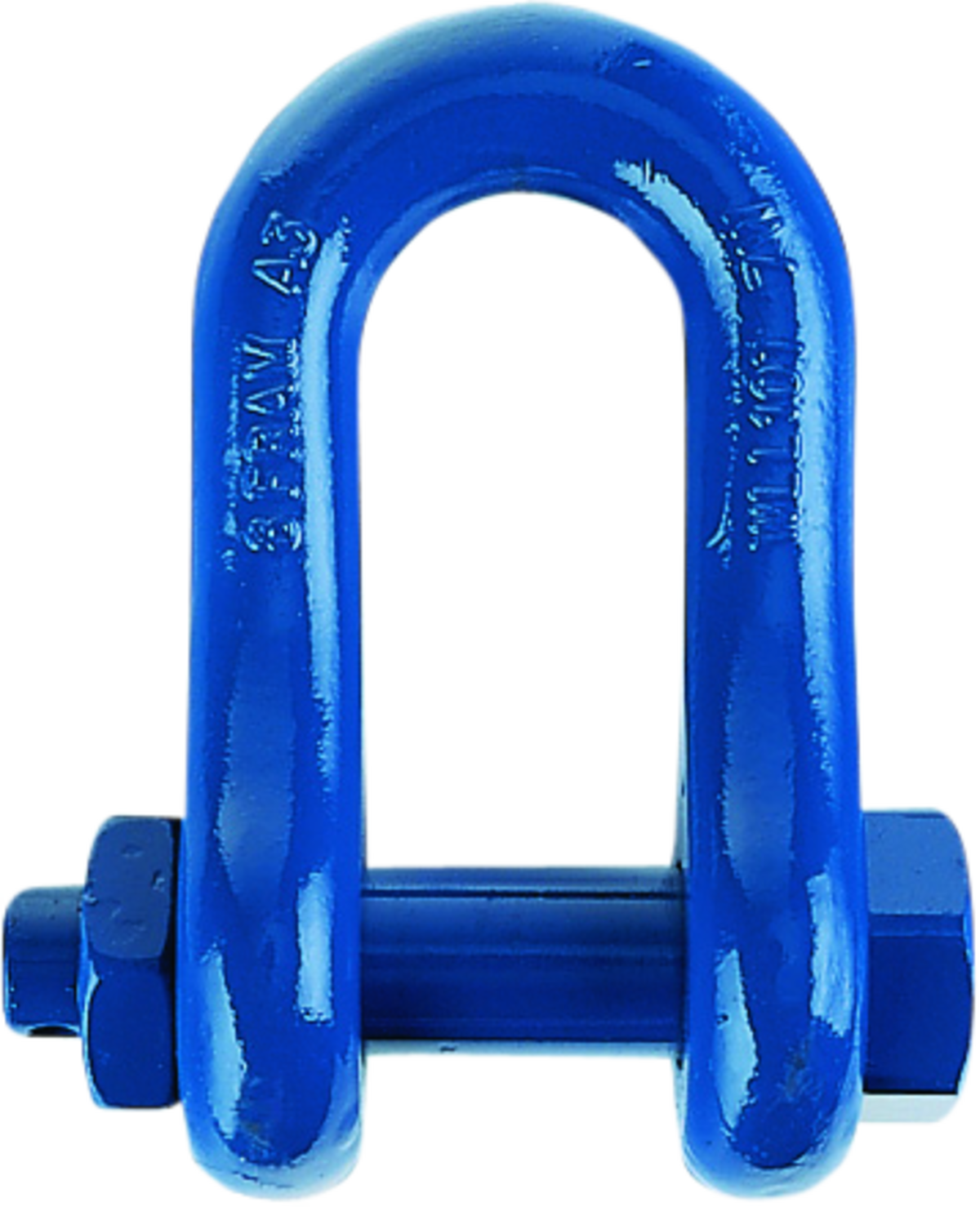

FRAM Shackles- short type C - with nut pin

Dim. code | WLL (ton)

Find dealer

Downlad datasheet

Ask for delivery time

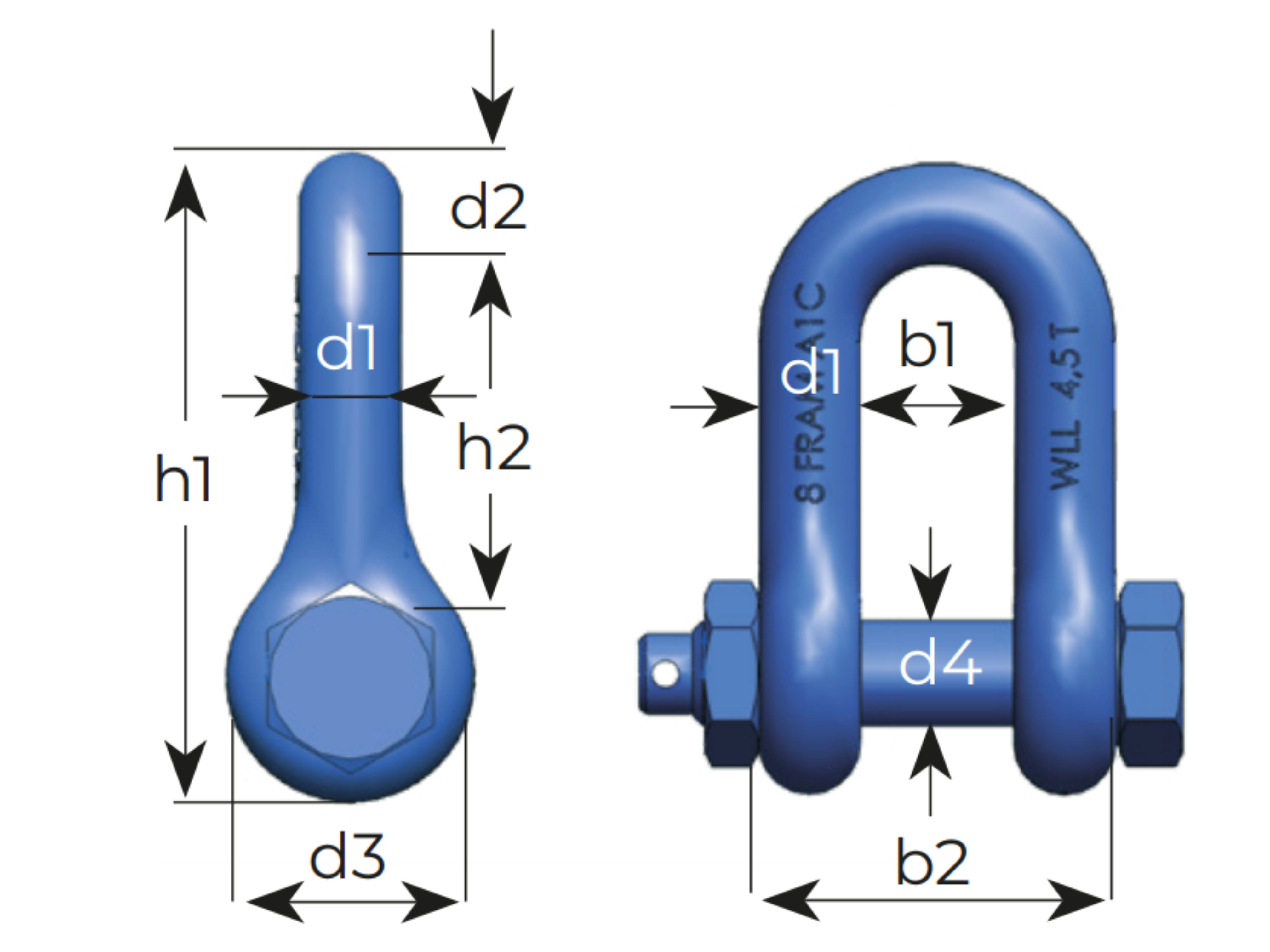

Item no.	Dim.Code	WLL	Dim mm								kg
		5:1 ton	b1	b2	d1	d2	d3	d4	h1	h2	N.W.
0206201	A.06.C	2	19	45	13	14	28	12	79	45	0.2
0206202	A.1.C	3.25	23	53	15	16	36	16	94	53	0.4
0206203	A.2.C	6.0	33.5	73	19.5	22	45	22	127	74	1.1
0206204	A.3.C	10.0	43	93	25	25	60	28	162	94	2.4
0206205	A.5.C	15.0	48	112	32	32	72	33	203	110	4.1
0206206	A.6.C	25.0	54	124	35	35	82	39	216	121	5.9
