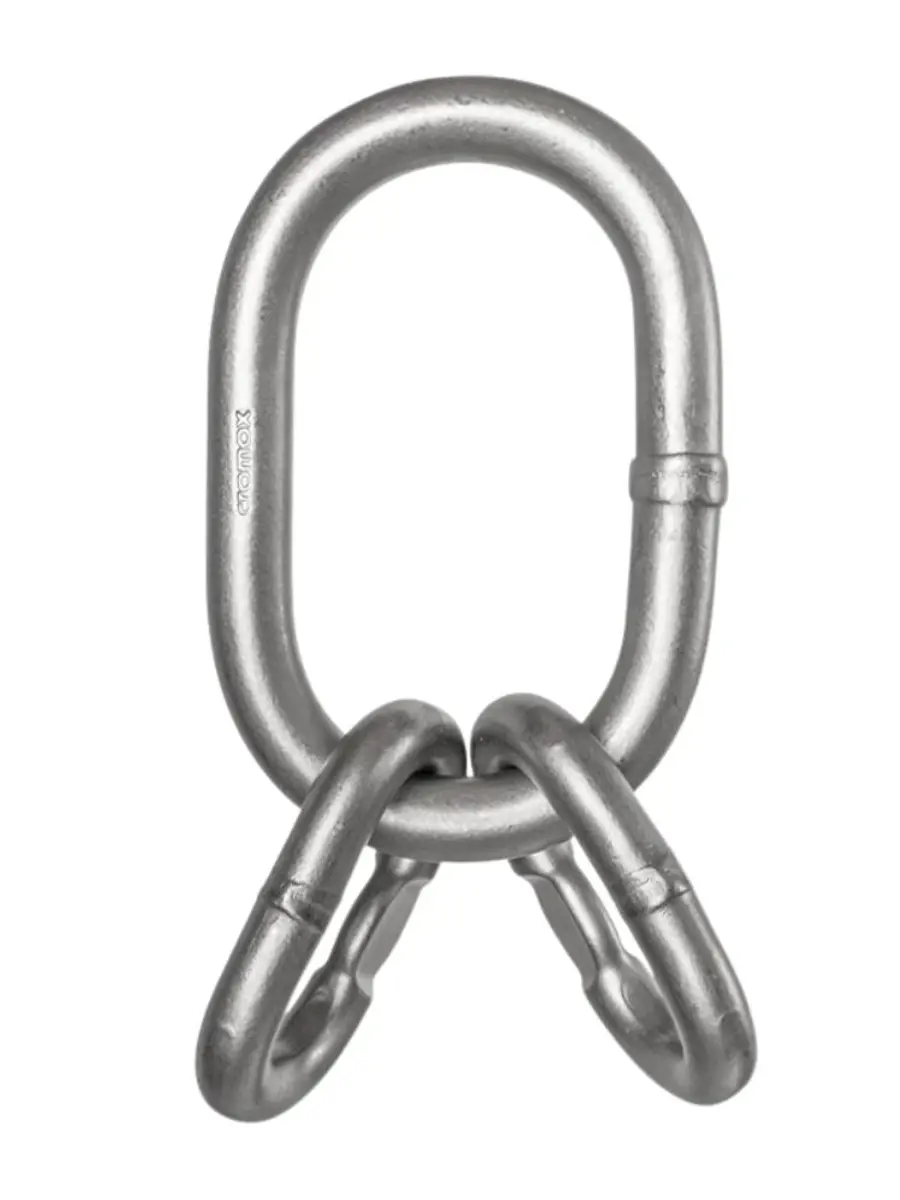

Stainless master link assemblies - type CAKF

Dim. code | WLL (ton)

Nøsted & is the only master link manufacturer in Norway.
Fram master links and master link assemblies are type approved by DNVGL in accordance with DNVGL 2.7-1 and EN 1677-4.
Fram master link are produced up to 70 mm and 84,4 tons with safety factor 5.
Master links and hooks are tested 2,5 times WLL and certified

Find dealer

Downlad datasheet

Ask for delivery time

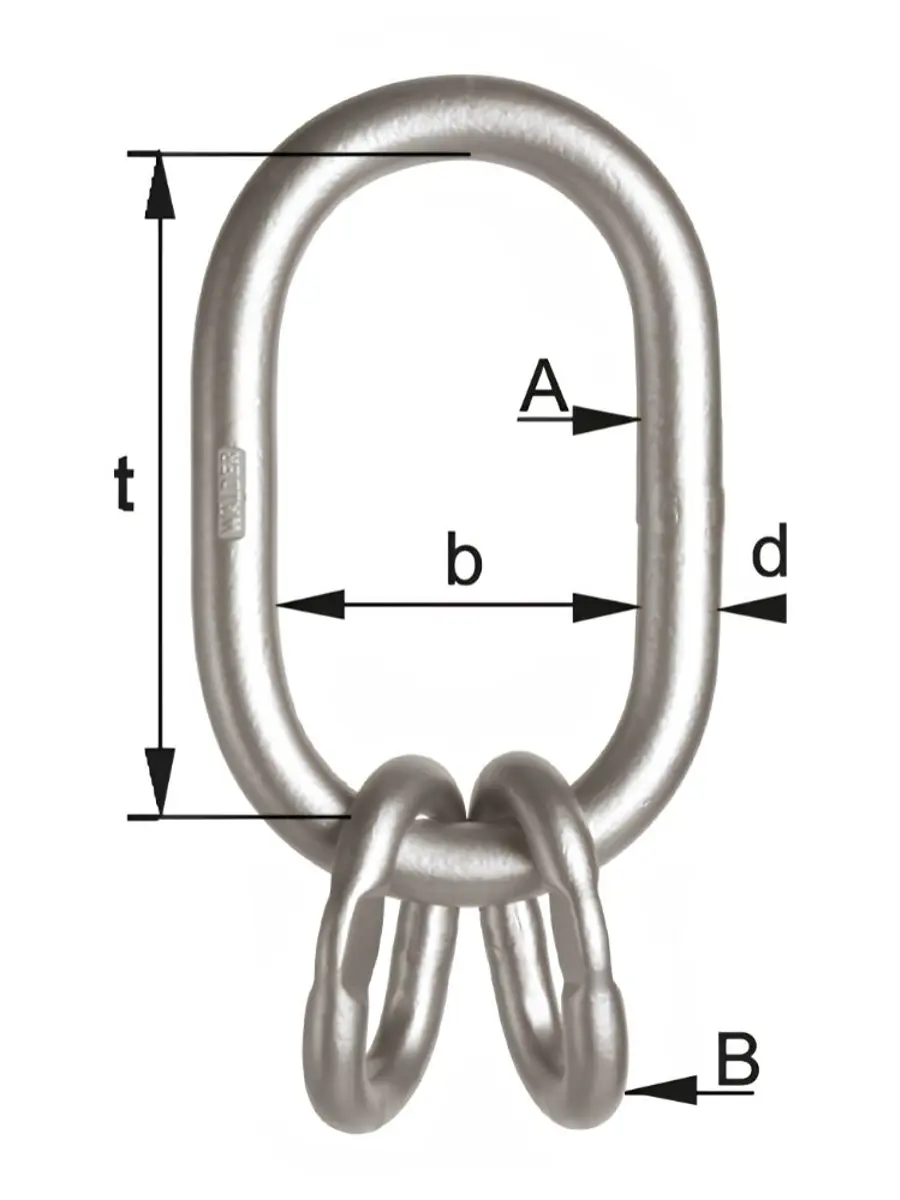

Item no.	Dim.Code	WLL 4:1 ton		Dim mm			kg
		Kg ß 45°	Kg ß 60°	D	T	b	/m
0502251	CAKF 16/13	2.65	1.85	A 16	110	60	0.90
				B 13	54	25
0502252	CAKF 18/16	3.25	2.3	A 18	135	75	1.60
				B 16	70	34
0502253	CAKF 22/18	5.15	3.65	A 22	160	90	2.76
				B18	85	40
0502254	CAKF 26/22	8.15	5.75	A 26	180	100	4.45
				B 22	115	50
0502255	CAKF 32/26	10.50	7.5	A 32	200	110	7.55
				B 26	140	65

Technical data
