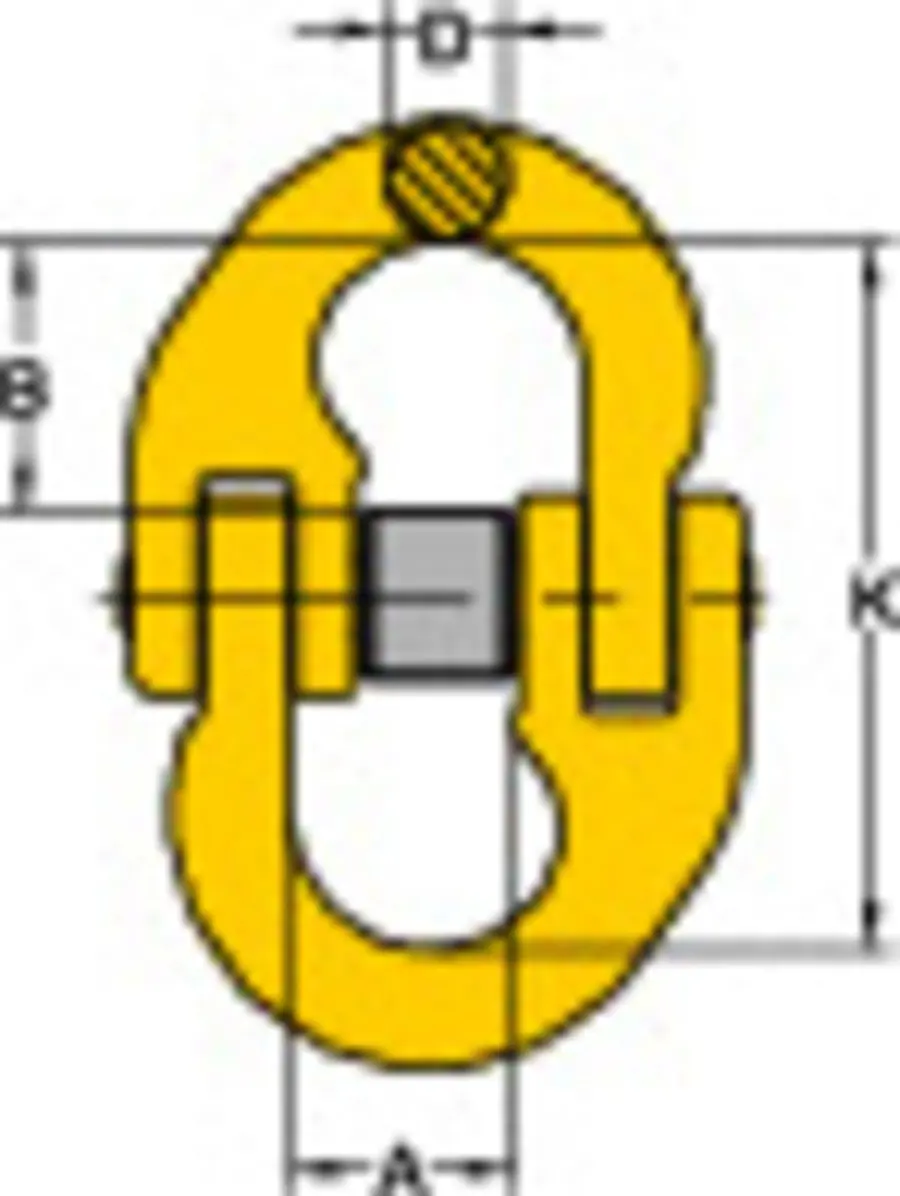

Item no. | Type.Code | WLL | For chain dim | Dim mm | KG | |||
4:1 ton | K | A | D | B | N.W. | |||
0213021 | YA-6 | 1,12 | 6 mm | 44 | 15 | 7 | 17 | 0,08 |
0213022 | YA-7/8 | 2,00 | 7-8 mm | 57 | 18 | 9 | 22 | 0,2 |
0213023 | YA-10 | 3,15 | 10 mm | 68 | 25 | 11 | 26 | 0,3 |
0213024 | YA-13 | 5,30 | 13 mm | 91 | 30 | 16 | 35 | 0,7 |
0213025 | YA-16 | 8,00 | 16 mm | 100 | 36 | 19 | 38 | 1,1 |
0213026 | YA-18/20 | 12,50 | 18-20 mm | 122 | 42 | 22 | 46 | 1,9 |
0213027 | YA-22 | 15,00 | 22 mm | 152 | 49 | 24 | 59 | 3,0 |
0213028 | YA-26 | 21,20 | 26 mm | 162 | 55 | 30 | 62 | 5,0 |
0213029 | YA-32 | 31,50 | 32 mm | 202 | 69 | 36 | 79 | 9,0 |
