Ask for delivery time
| Item no. | Type.Code | WLL | For chain dim | Dim mm | KG | ||||

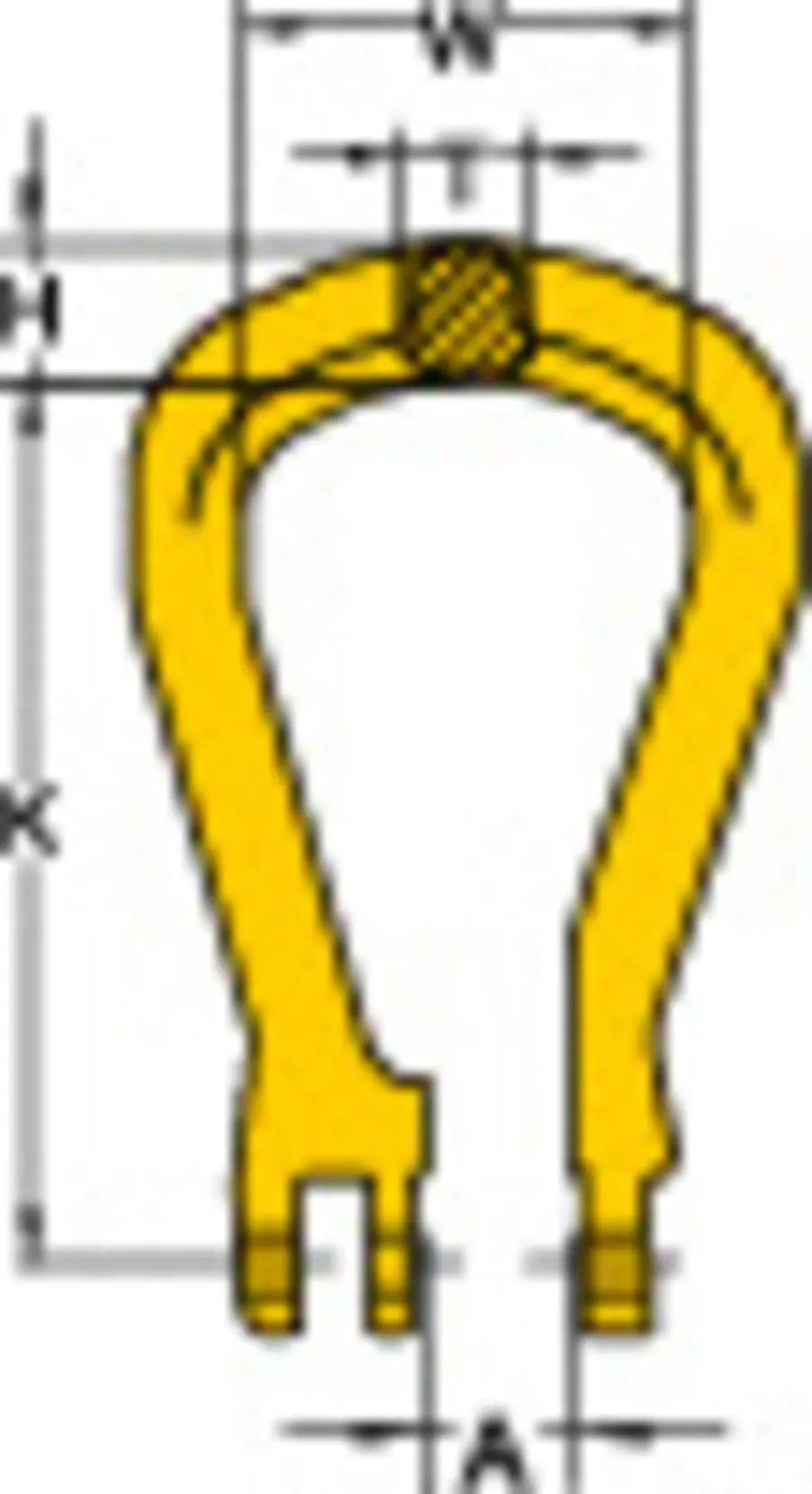

| 4:1 ton | K | W | T | H | A | N.W. | |||
| 0311101 | EC-7/8 | 2,00 | 7-8 mm | 100 | 50 | 15 | 15 | 15 | 0,3 |
| 0311102 | EC-10 | 3,15 | 10 mm | 127 | 66 | 19 | 19 | 19 | 0,6 |
| 0311103 | EC-13 | 5,3 | 13 mm | 145 | 72 | 23 | 22 | 25 | 1,0 |
| 0311104 | EC-16 | 8,00 | 16 mm | 174 | 80 | 25 | 26 | 30 | 1,6 |
| 0311105 | EC-18/20 | 12,5 | 18-20 mm | 202 | 104 | 31 | 36 | 36 | 2,8 |
