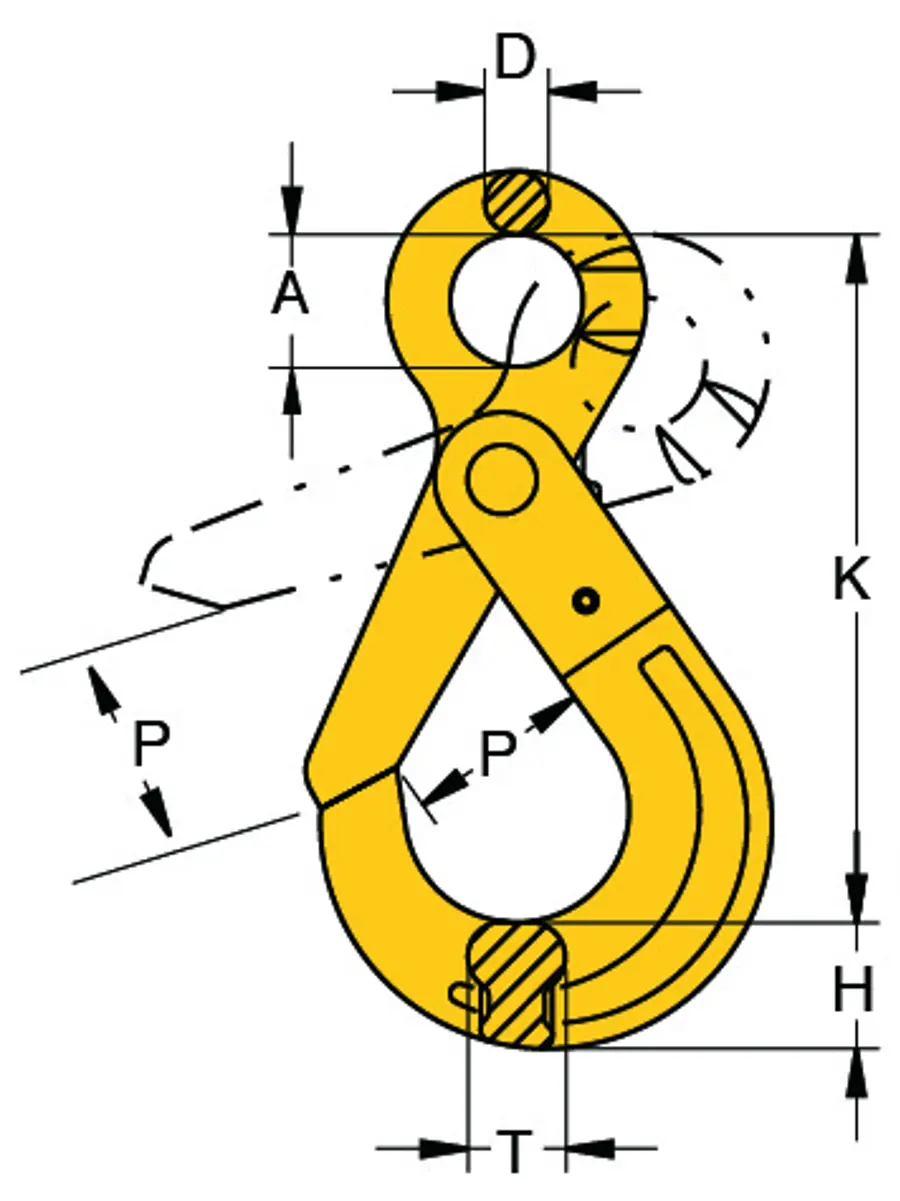

Item no. | Type | WLL | For chain dim | Dim mm | KG | |||||
4:1 ton | K | P | A | D | T | H | N.W. | |||
0312800 | YC-6 | 1,12 | 6 mm | 110 | 29 | 21 | 10 | 15 | 19 | 0.5 |
0312801 | YC-7/8 | 2,00 | 7-8 mm | 136 | 34 | 25 | 11 | 20 | 24 | 0.8 |
0312802 | YC-10 | 3,15 | 10 mm | 167 | 44 | 32 | 13 | 26 | 30 | 1.4 |
0312803 | YC-13 | 5,30 | 13 mm | 207 | 52 | 40 | 16 | 30 | 39 | 3 |
0312804 | YC-16 | 8,00 | 16 mm | 252 | 60 | 52 | 21 | 36 | 49 | 5.7 |
0312805 | YC-18/20 | 12,50 | 18-20 mm | 282 | 90 | 64 | 23 | 48 | 62 | 8.5 |
0312806 | YC-22 | 15,00 | 22 mm | 319 | 80 | 70 | 24 | 49 | 63 | 11.2 |
0312807 | YC-26 | 21,20 | 26 mm | 343 | 99 | 80 | 25 | 56 | 69 | 14.5 |
0312808* | YC-28 | 25,00 | 28 mm | 401 | 120 | 90 | 28 | 63 | 81 | 24.4 |
