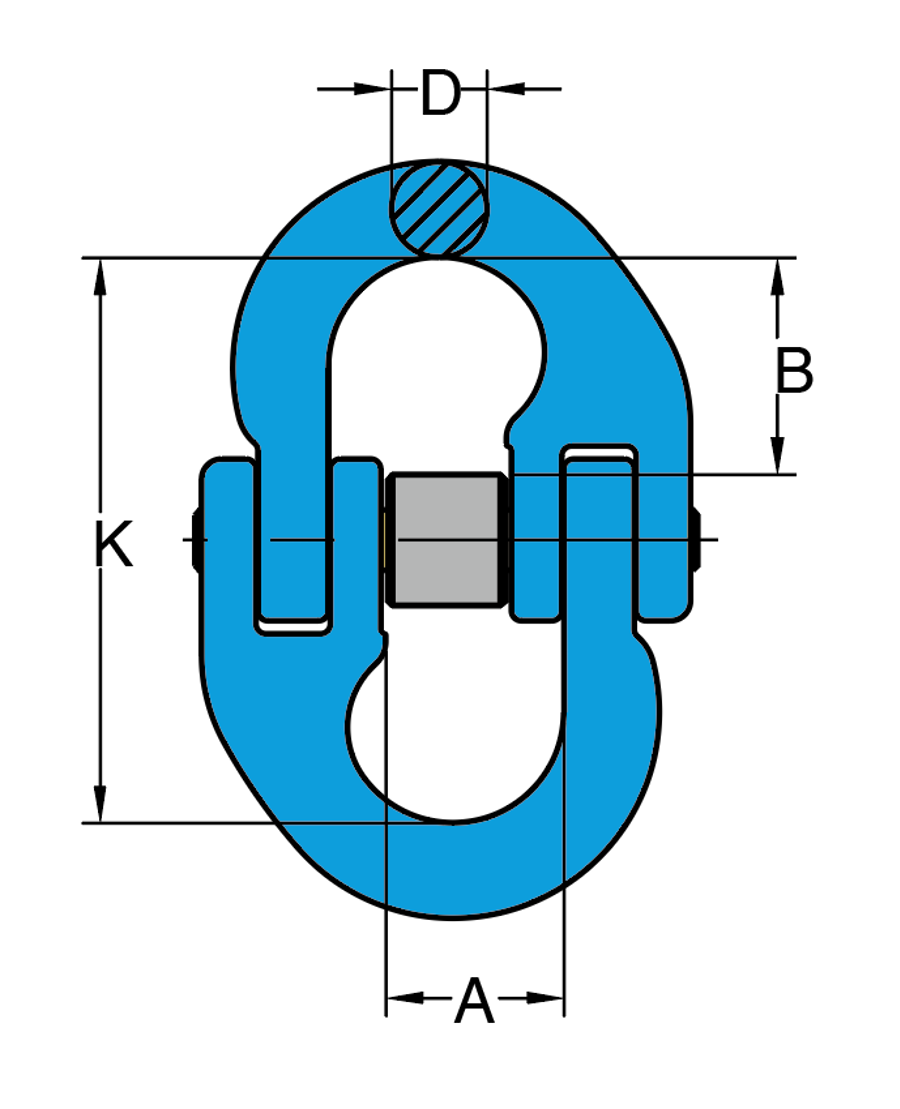

Item no. | WLL | For chain dim. | Dim mm | kg | |||
4:1 ton | K | A | D | B | N.W. | ||
0213071 | 1.4 | 6 mm | 45 | 15 | 7 | 18 | 0.08 |
0213072 | 2.5 | 7-8 mm | 59 | 18 | 9 | 25 | 0.2 |
0213073 | 4.0 | 10 mm | 69 | 25 | 11 | 28 | 0.3 |
0213074 | 6.7 | 13 mm | 92 | 30 | 16 | 38 | 0.7 |
0213075 | 10.0 | 16 mm | 101 | 36 | 19 | 41 | 1.2 |
0213076 | 16.0 | 18-20 mm | 122 | 42 | 23 | 50 | 2.1 |
0213077 | 19.0 | 22 mm | 152 | 49 | 24 | 63 | 3.5 |
