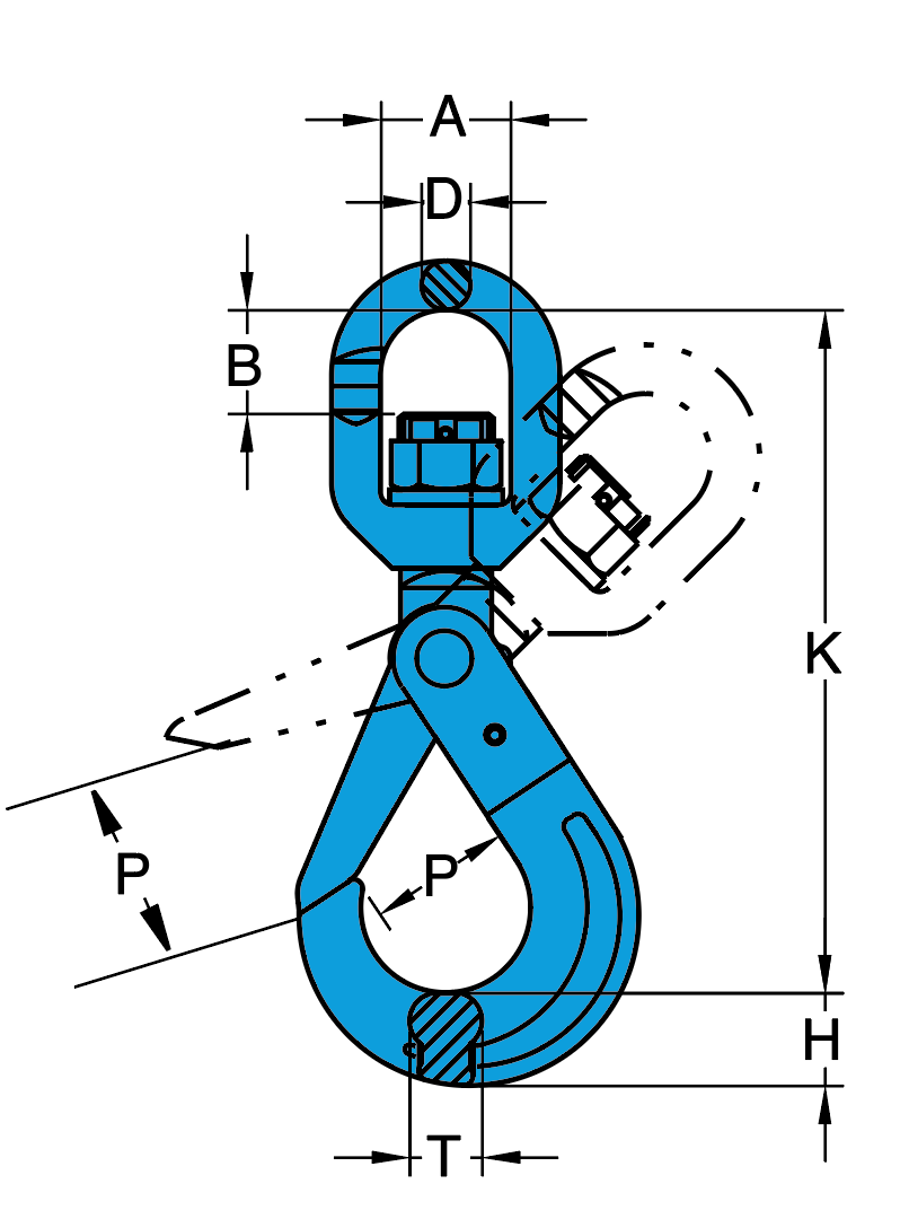

Item no. | WLL | For chain dim | Dim mm | KG | ||||||
4:1 ton | K | P | B | A | D | T | H | N.W. | ||
0312881 | 2,5 | 7-8 mm | 186 | 34 | 29 | 36 | 13 | 20 | 24 | 1,2 |
0312882 | 4,0 | 10 mm | 218 | 44 | 34 | 41 | 16 | 26 | 30 | 2,0 |
0312883 | 6,7 | 13 mm | 276 | 51 | 43 | 46 | 21 | 30 | 39 | 4,1 |
0312884 | 10,0 | 16 mm | 329 | 60 | 50 | 61 | 23 | 36 | 49 | 7,2 |
0312885 | 16,0 | 18-20 mm | 387 | 70 | 82 | 74 | 25 | 53 | 65 | 13,0 |
