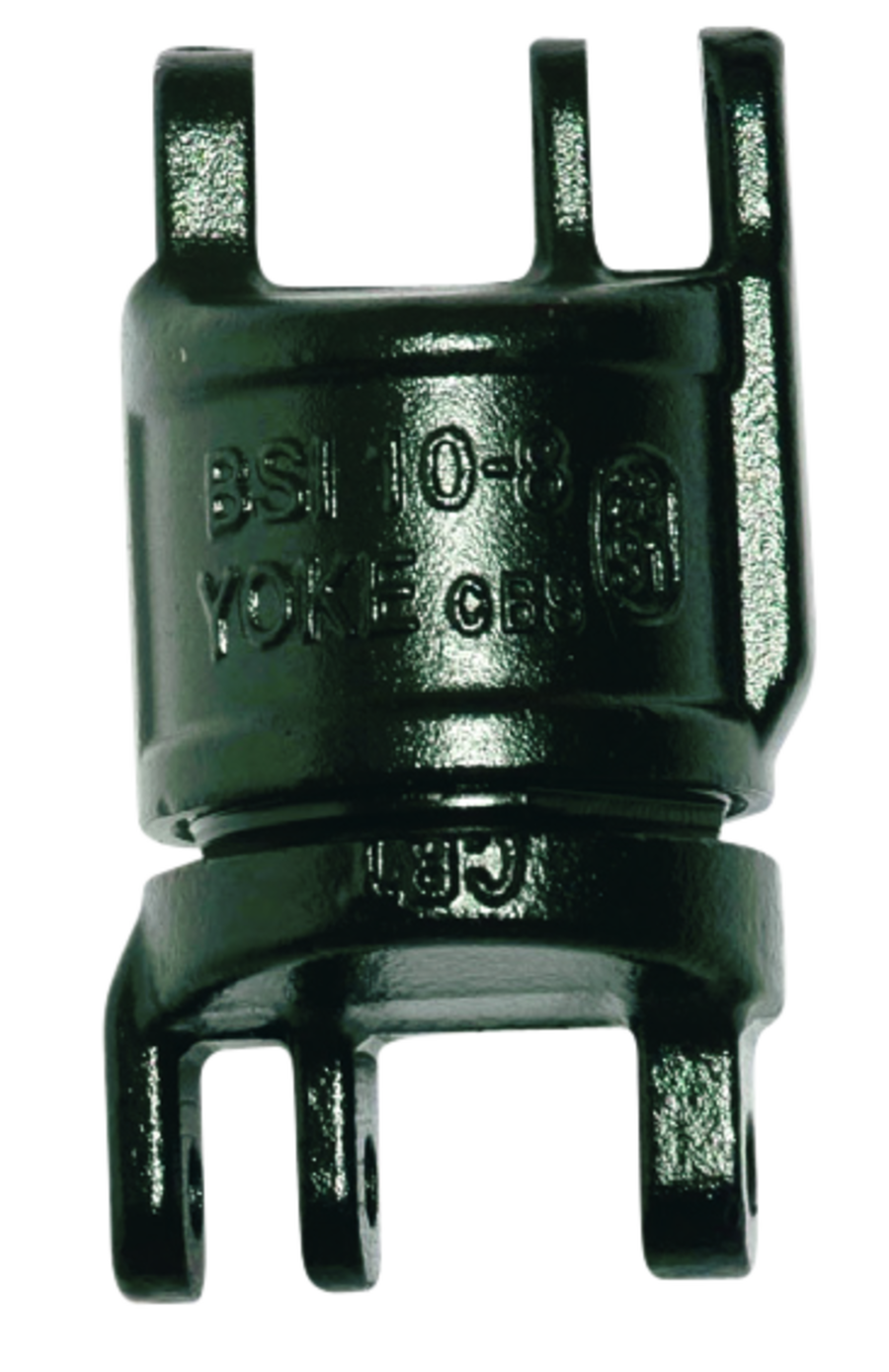

Yoke Insulated Blank Swivel with Ball Bearing BSI

Dim. code | WLL (ton)

Individually tested to resist 1000 Volts insulated with Test Certificate.
Design for protection of overhead crane during welding operations on suspended loads.
Design factor 4:1 proof tested and certifiec according to EN 1677.

Show more

Find dealer

Downlad datasheet

Ask for delivery time

Item no.	Type.Code	WLL	For chain	Dim mm		kg
		4:1 ton		D	L	N.W.
0210101	BSI-7/8	2,00	7-8 mm	50	75	0.6
0210102	BSI-10	3,15	10 mm	62	94	1,2
0210103	BSI-13	5,30	13 mm	77	123	2,4
0210104	BSI-16	8,00	16 mm	94	143	4,2
0210105	BSI-18/20	12,50	18-20 mm	109	164	6,7
