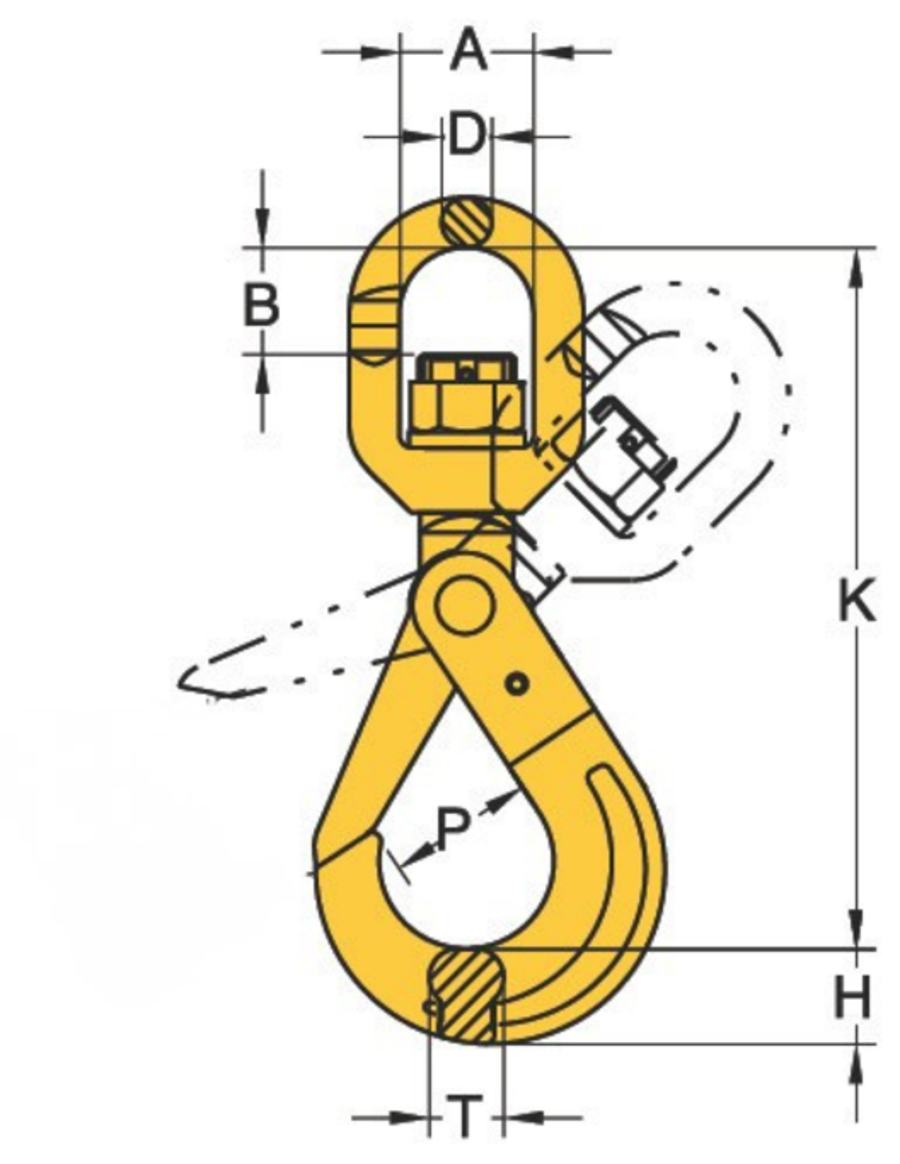

Item no. | Code | WLL | For chain dim | Dim mm | KG | ||||||
4:1 ton | K | P | B | A | D | T | H | N.W. | |||
0312809 | YE-6 | 1,12 | 6 mm | 149 | 29 | 22 | 31 | 12 | 15 | 19 | 0,7 |
0312810 | YE-7/8 | 2,00 | 7-8 mm | 186 | 34 | 29 | 36 | 14 | 20 | 24 | 1,2 |
0312811 | YE-10 | 3,15 | 10 mm | 220 | 44 | 34 | 40 | 16 | 26 | 30 | 2,0 |
0312812 | YE-13 | 5,30 | 13 mm | 267 | 52 | 43 | 46 | 22 | 30 | 39 | 4,1 |
0312813 | YE-16 | 8,00 | 16 mm | 328 | 60 | 50 | 60 | 24 | 36 | 49 | 7,2 |
0312814 | YE-18/20 | 12,50 | 18-20 mm | 388 | 90 | 82 | 75 | 26 | 48 | 62 | 11,5 |
0312815 | YE-22 | 15,00 | 22 mm | 457 | 80 | 95 | 97 | 33 | 49 | 63 | 18,6 |
0312816 | YE-26 | 21,20 | 26 mm | 535 | 99 | 115 | 123 | 52 | 56 | 69 | 31,9 |
