Yoke Swivel Self Locking Hook - YEN

Dim. code | WLL (ton)

Code YEN
Ball bearing performs to fully swivel under load.
Design factor 4:1 proof tested and certified according to EN 1677.

Show more

Find dealer

Downlad datasheet

Ask for delivery time

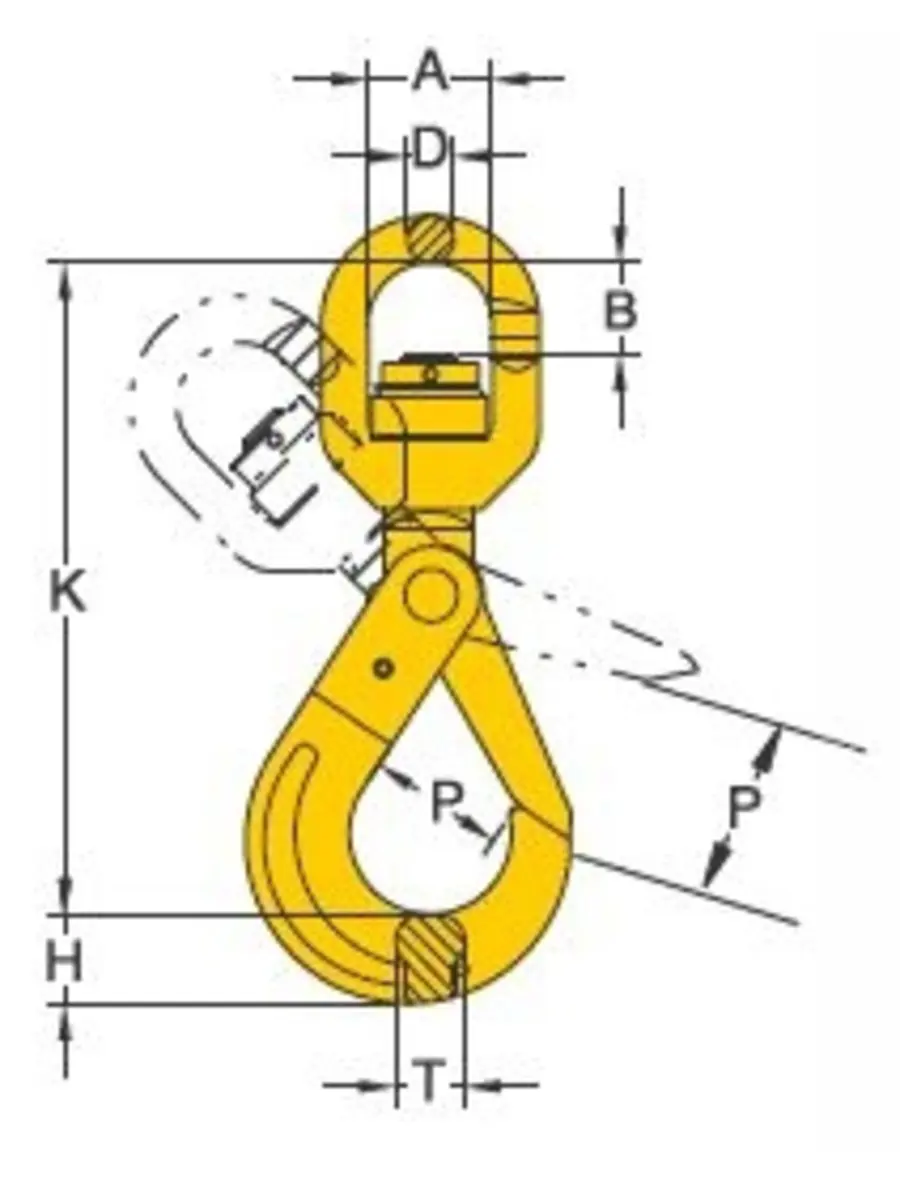

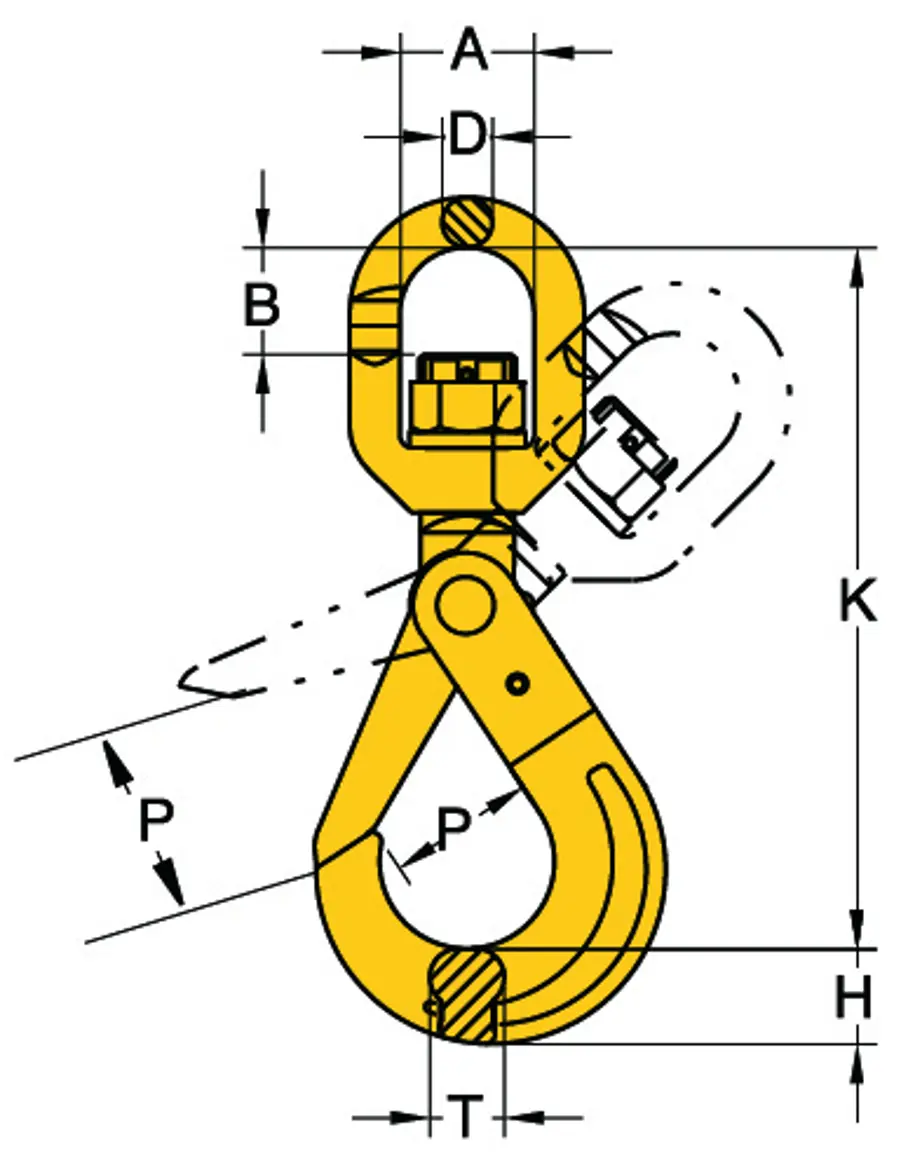

Item no.	Code	WLL	For chain dim	Dim mm							KG
		Tonn		A	B	D	H	K	P	T	N.W.
0312810N	YEN-7/8	2,0	7-8 mm	36	29	14	24	186	34	20	1,2
0312811N	YEN-10	3,15	10 mm	40	34	16	30	220	44	26	2,0
0312812N	YEN-13	5,3	13 mm	46	43	22	39	267	52	30	4,2
0312813N	YEN-16	8,0	16 mm	60	50	24	49	328	60	36	7,3
0312814N	YEN-18/20	12,5	18-20 mm	75	82	26	62	388	90	48	11,7
