Masterlinks stainless steel

Dim. code | WLL (ton)

Nøsted & is the only master link manufacturer in Norway.
Fram master links and master link assemblies are type approved by DNVGL in accordance with DNVGL 2.7-1 and EN 1677-4.
Fram master link are produced up to 70 mm and 84,4 tons with safety factor 5.
Master links and hooks are tested 2,5 times WLL and certified

Find dealer

Downlad datasheet

Ask for delivery time

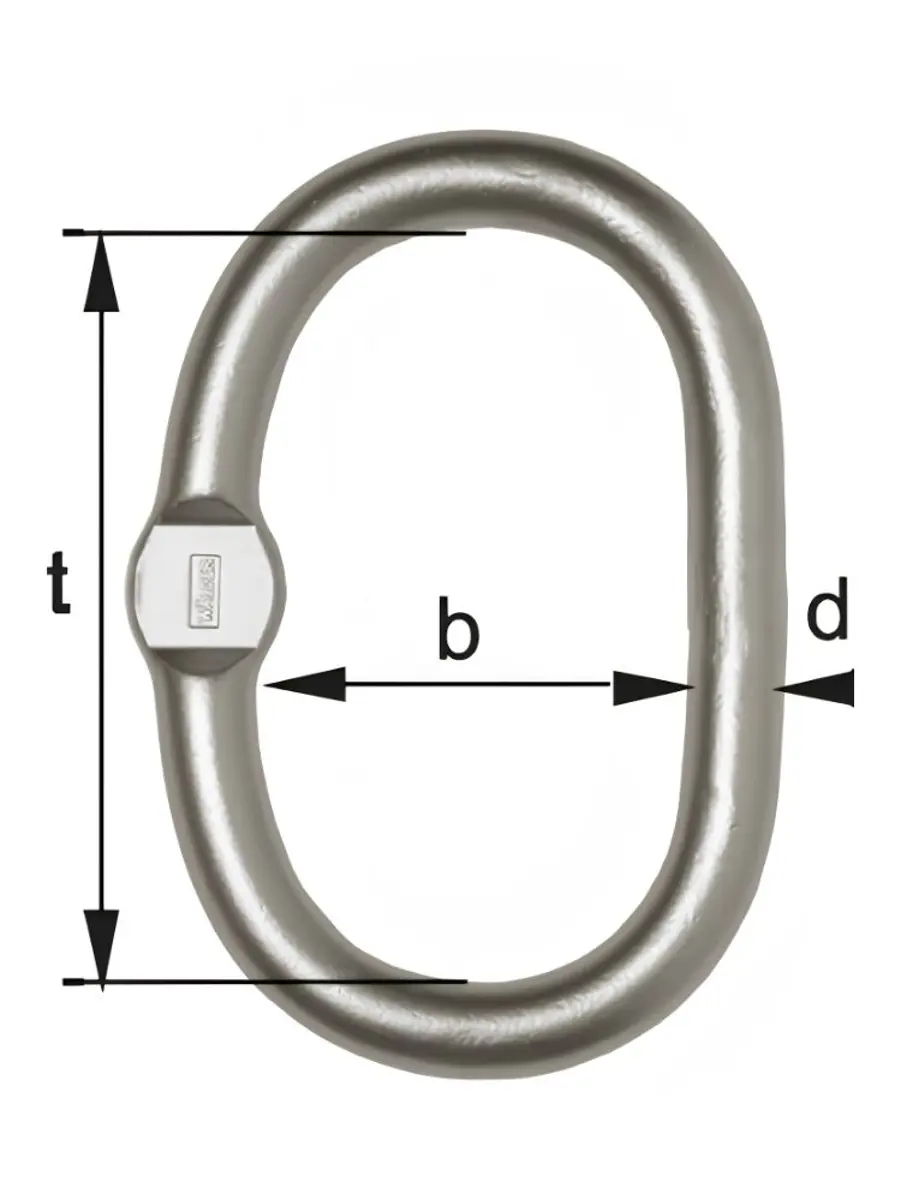

Item no.	Dim.Code	WLL	Dim mm			kg
		4:1 ton	D	T	B	/m
0502241	CAGF 13	1.55	13	110	60	0.34
0502242	CAGF 16	2.45	16	110	60	0.53
0502243	CAGF 18	3.55	18	135	75	0.80
0502244	CAGF 22	6.00	22	160	90	1.50
0502245	CAGF 26	8.00	26	180	100	2.30
0502246	CAGF 32	12.00	32	200	110	3.90
