fram-kjettingredskap-3part

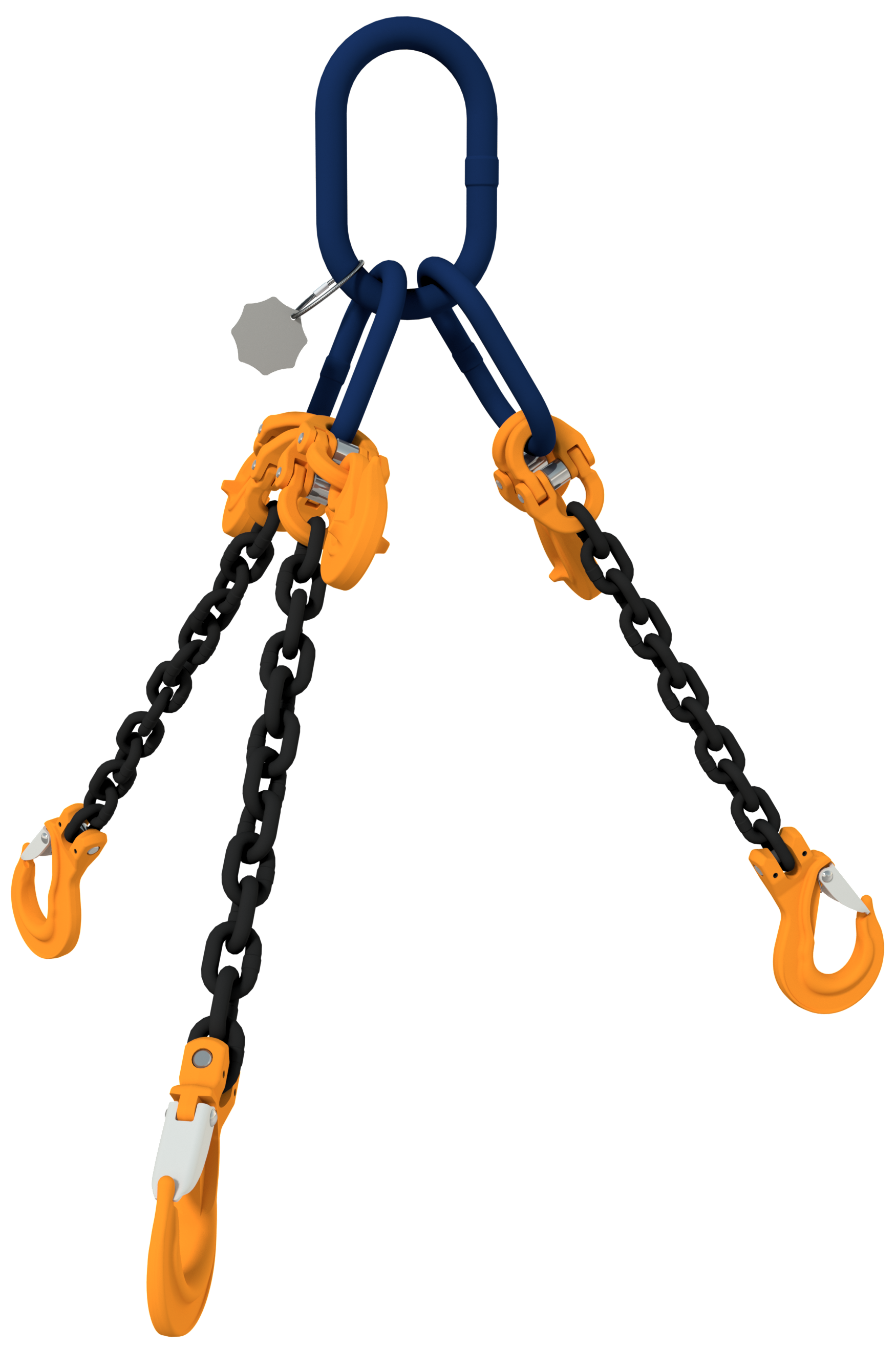

pic_Chain sling G80 3-legged__Kjettingredskap 3Part (1)

FRAM chain slings are delivered iaw. NS-EN 818-4, either coupled or fully welded, with grab hooks and self locking hooks. All slings are tested and certified. Packed in sacks with individual marking.

Find dealer

Downlad datasheet

Ask for delivery time

	WLL

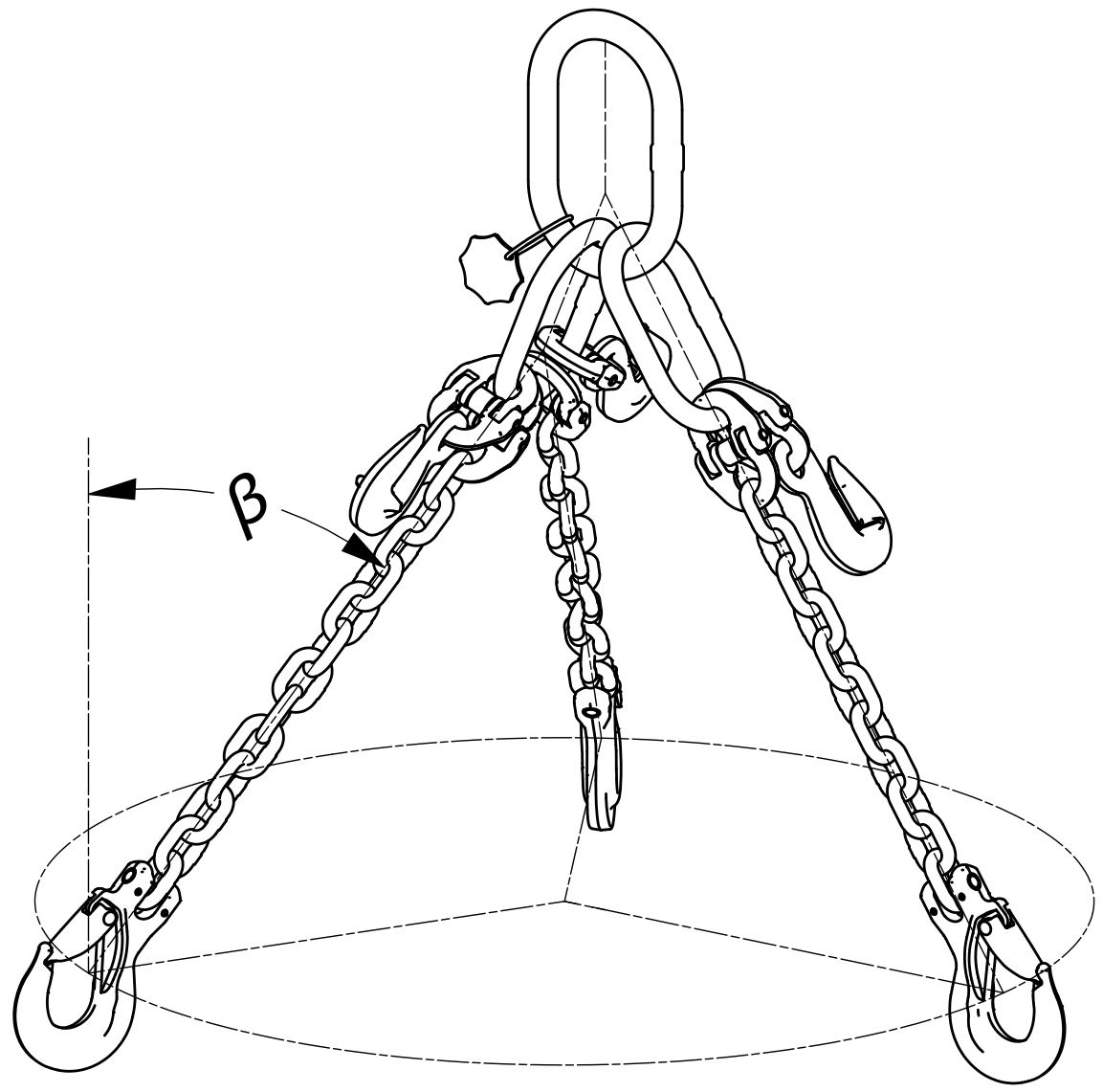

Working angle	β = 30°		β = 45°		β = 60°
Load factor	2,6		2,1		1,5
Chain dimension (mm)	tonne	kN	tonne	kN	tonne	kN
7	3,9	38,3	3,15	30,9	2,24	22,0
8	5,2	51,0	4,25	41,7	3	29,4
10	8,2	80,4	6,7	65,7	4,75	46,6
13	13,7	134,4	11,2	109,9	8	78,5
16	20,8	204,0	17	166,8	11,8	115,8
20	32,5	318,8	26,5	260,0	19	186,4
22	39	382,6	31,5	309,0	22,4	219,7
26	55,1	540,5	45	441,5	31,5	309,0
32	80	784,8	67	657,3	47,5	466,0
