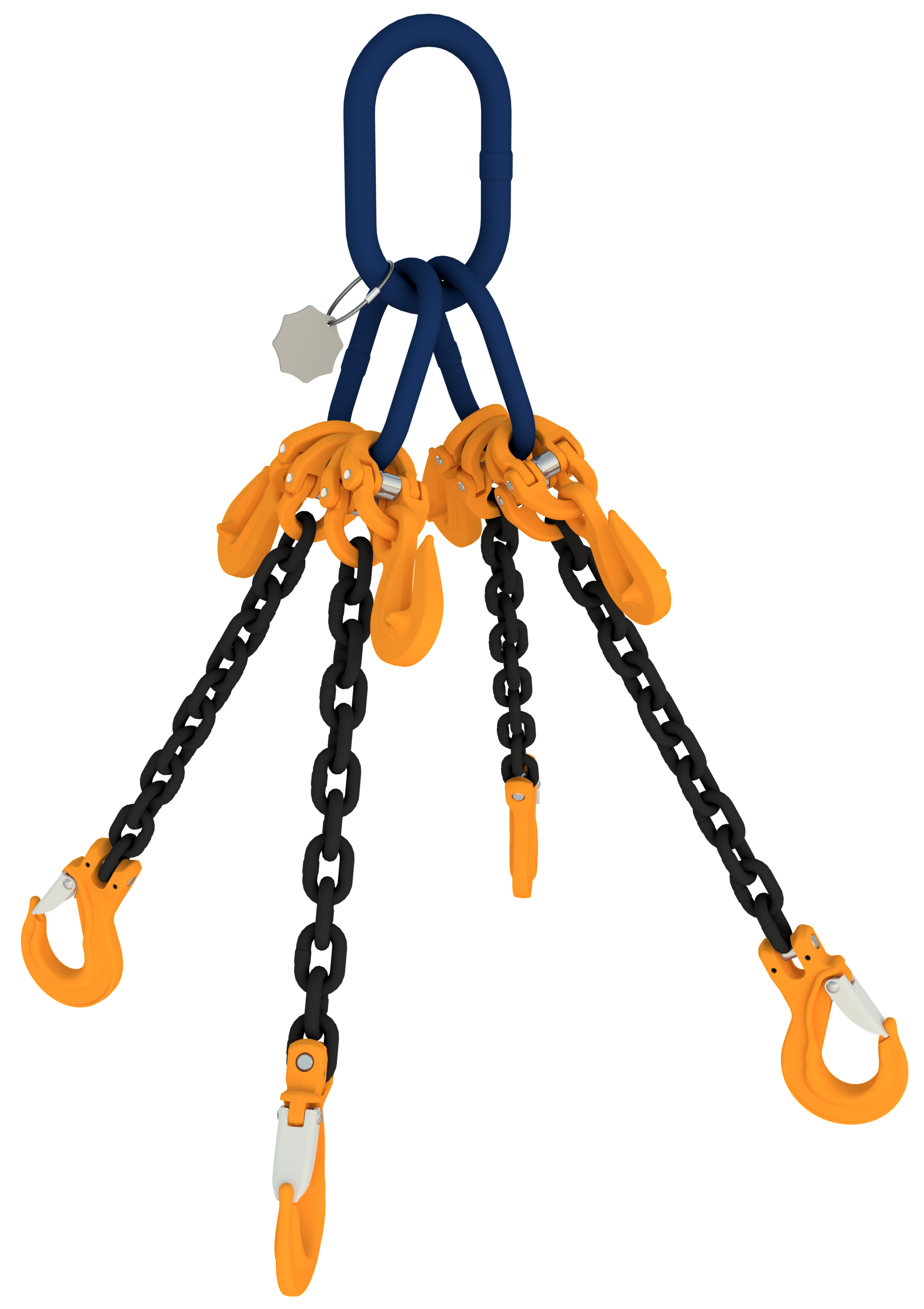

Chain sling G80 4-legged
Dim. code | WLL (ton)

FRAM chain slings are delivered iaw. NS-EN 818-4, either coupled or fully welded, with grab hooks and self locking hooks. All slings are tested and certified. Packed in sacks with individual marking.

Show more
Find dealer
Ask for delivery time



  WLL

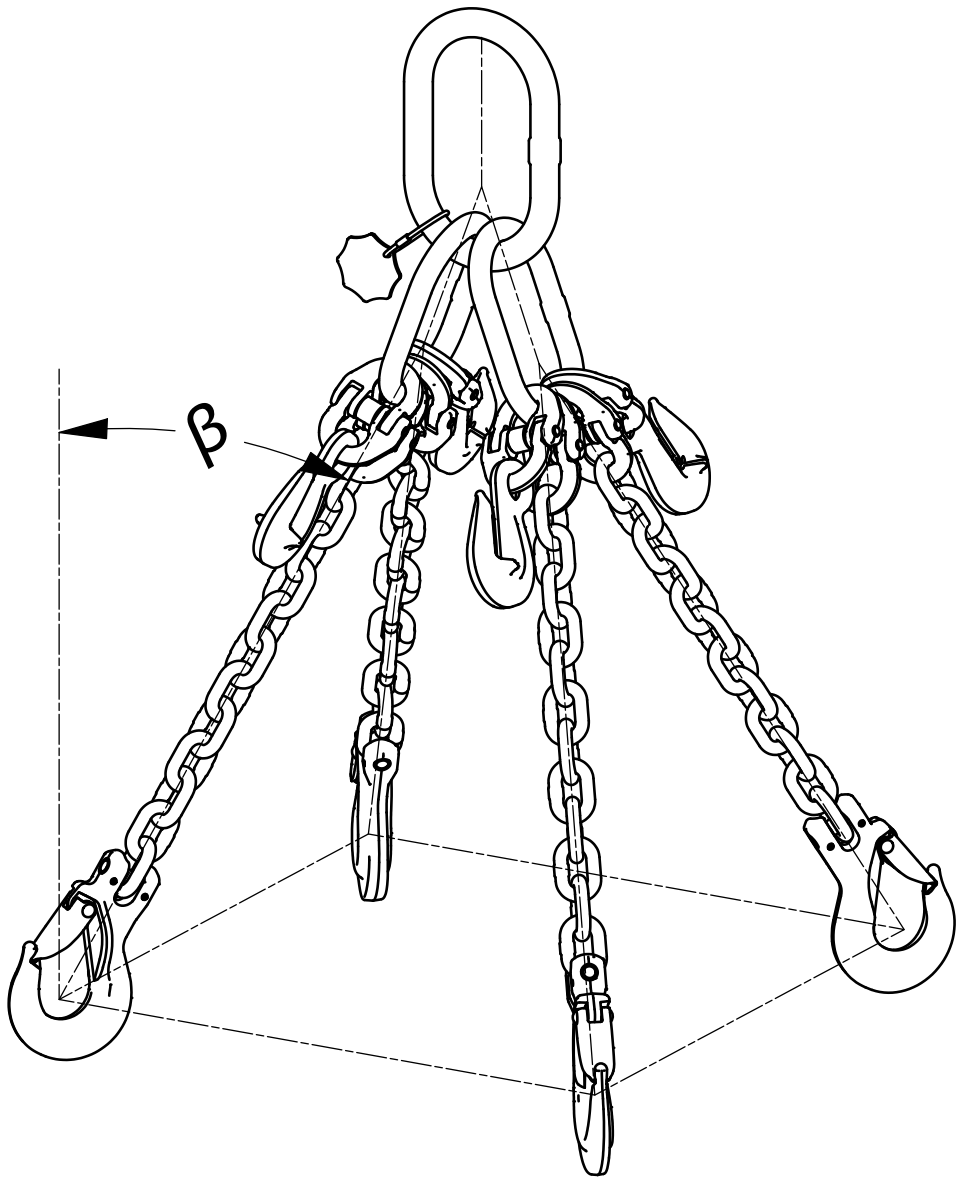

Working angle β = 30° β = 45° β = 60°
Load factor 2,6 2,1 1,5
Chain dimension (mm) tonne kN tonne kN tonne kN
7 3,9 38,3 3,15 30,9 2,24 22,0
8 5,2 51,0 4,25 41,7 3 29,4
10 8,2 80,4 6,7 65,7 4,75 46,6
13 13,7 134,4 11,2 109,9 8 78,5
16 20,8 204,0 17 166,8 11,8 115,8
20 32,5 318,8 26,5 260,0 19 186,4
22 39 382,6 31,5 309,0 22,4 219,7
26 55,1 540,5 45 441,5 31,5 309,0
32 80 784,8 67 657,3 47,5 466,0
